ACSR Conductor
ACSR Conductor

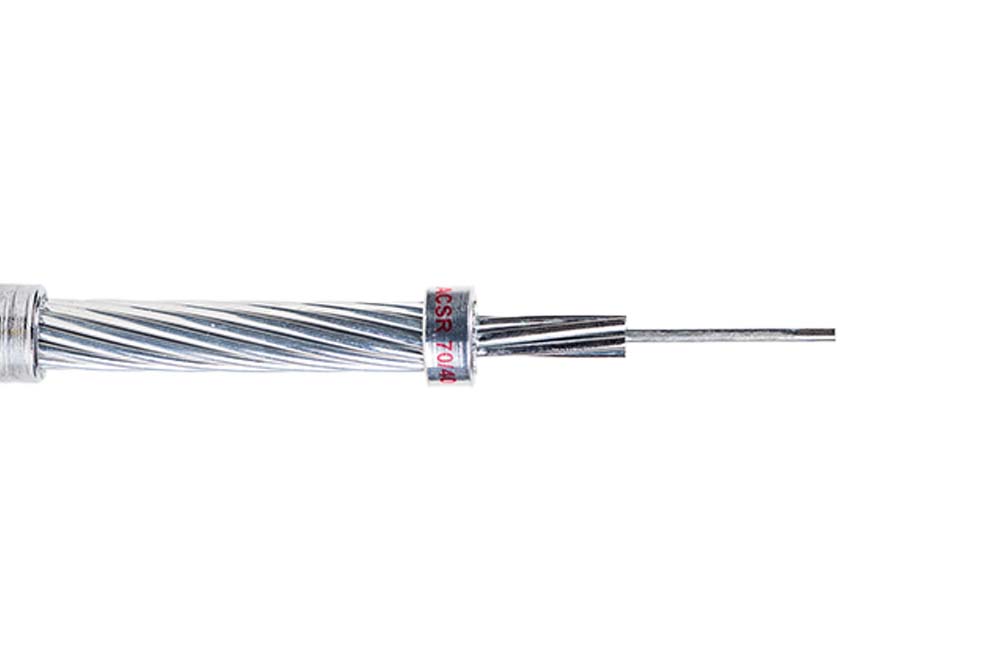

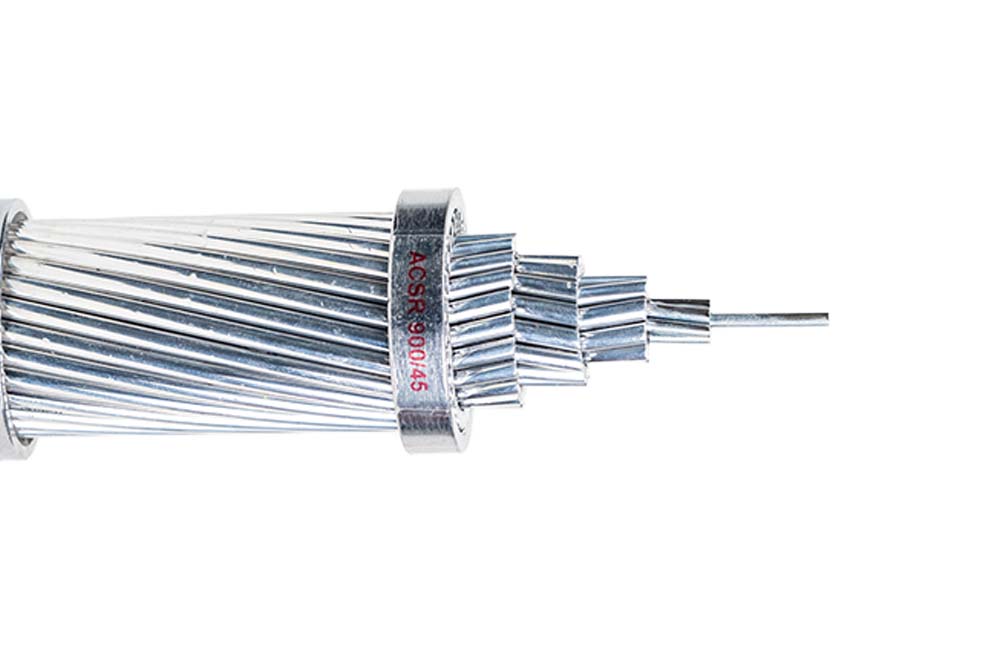

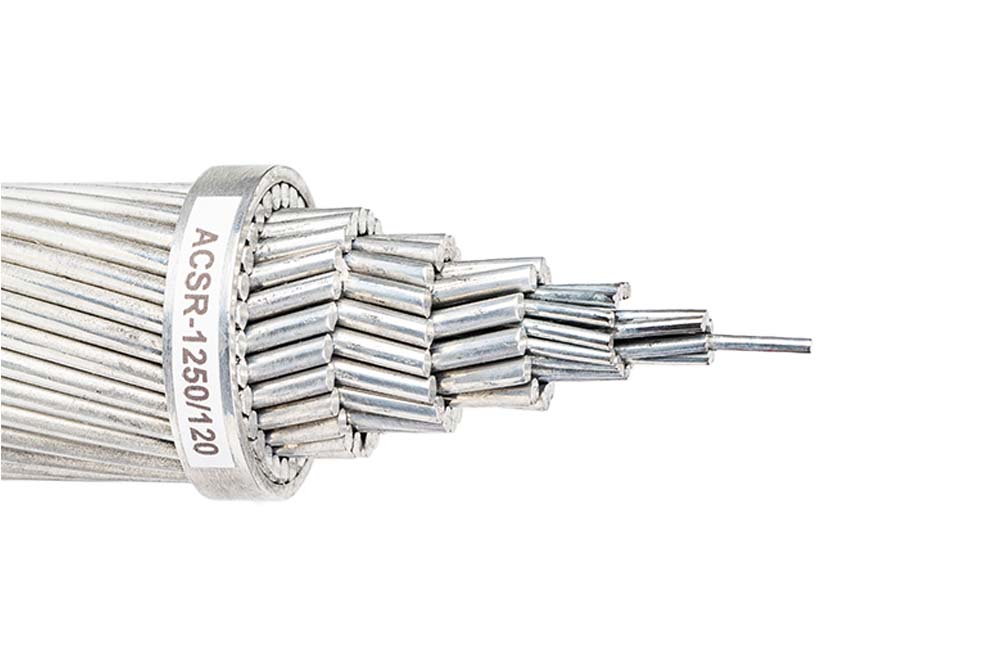

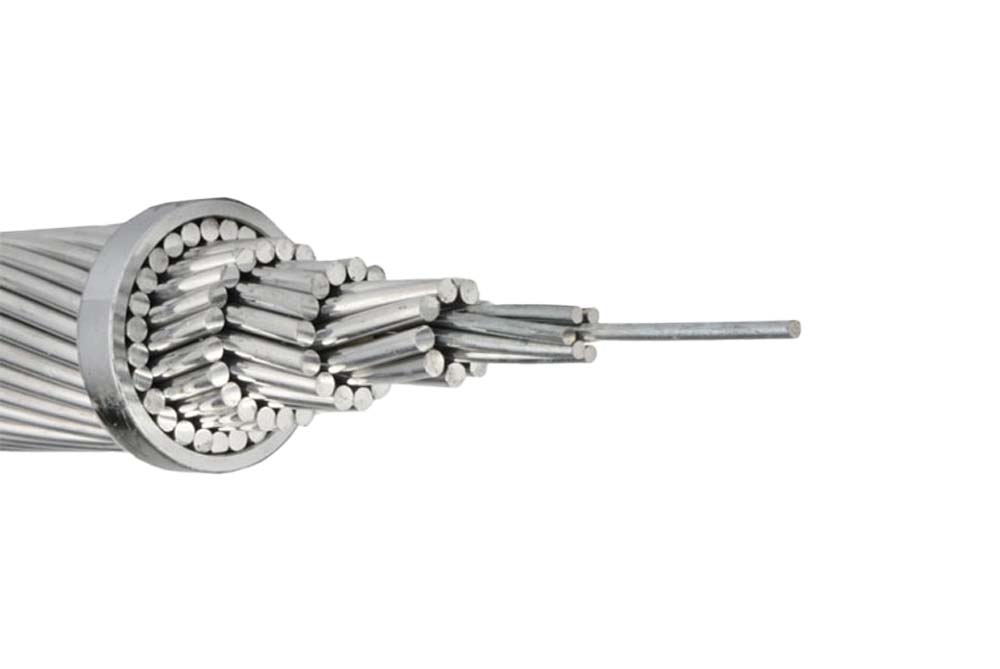

ACSR-Aluminium Conductor Steel Reinforced
Voltage: Height Voltage
Structure: Conductor Aluminum
Insulation no
Jacket no
Feature Bear conductor
Inquiry Now Send E-mail
  • Overview
  • Specifications
  • FAQ
  • Test&Acceptance
  • Send Message

Scope of application

Application

Aluminum Conductors and Steel Reinforced(ACSR) are used as overhead power lines, transmission lines, and distribution lines.

Features

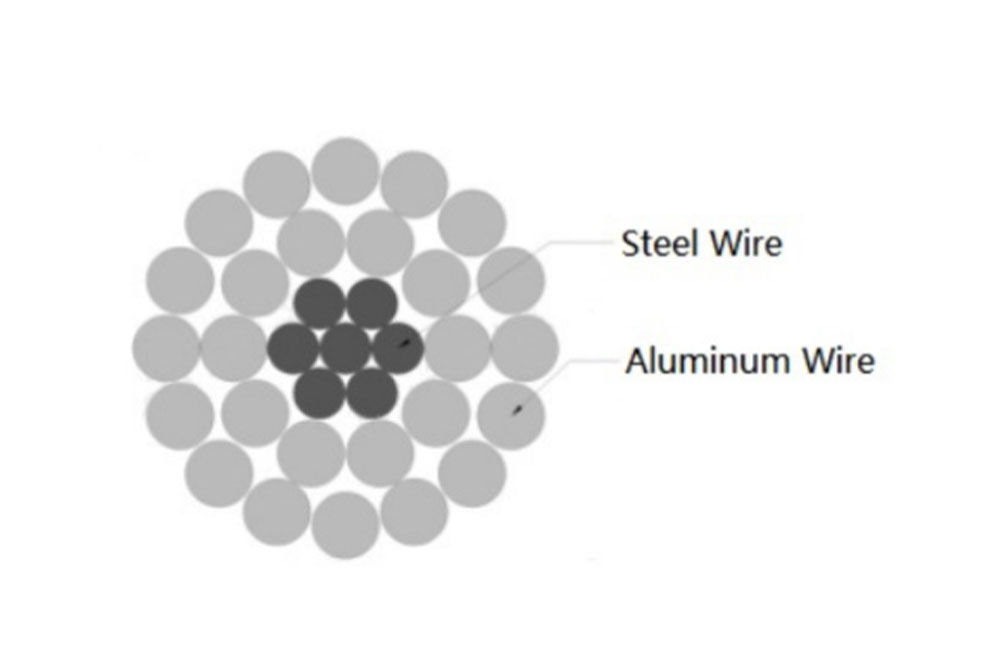

ACSR conductor consists of a solid or stranded steel core surrounded by strands of aluminium. ACSR conductor is available in a range of steel strengths varying from 6% up to 40%. The higher strength ACSR conductors are used for river crossings, overhead earth wires, and installations involving extra long spans. Against any given resistance of conductor, ACSR conductor may be manufactured to have different tensile strengths as per requirement. The principal advantage of these conductors are their high tensile strength and light weight, covering longer spans with less supports. Due to the greater diameter of an ACSR conductor much higher corona limit can be obtained, giving a big advantage on high and extra high voltage overhead lines.

CONSTRUCTION

Conductor

Hard Drawn Aluminium: BS EN 60889

AL1 and Zinc coated steel wire as per BS EN 50189 with the class and grade in accordance with ST1A, ST5E and ST6C

STANDARDS

ASTM B231, ASTM B 232, DIN 48201, BS 215, UNE 21.018.

Additional Standards

CODE AWG-MCM STRANDING
AL/Steel		 DIAMETER
ins		 WEIGHT PER 1000FT
lbs		 CONTENT
%		 RATED
STRENGHT
lbs		 ELECTRICAL
RESISTANCE
ohms/1000ft		 ALLOWABLE
AMPACITY
Amps
Individual wires Steel Total Al Steel Total Al Steel 20ºC
DC		 75ºC
AC
Al Steel
TURKEY 6 6/1 0.0661 0.0661 0.0661 0.198 24.5 11.6 36 67.9 32.1 1.19 0.641 0.806 105
SWAN 4 6/1 0.0834 0.0834 0.0834 0.25 39 18.4 57 67.9 32.1 1.86 0.403 0.515 140
SWANATE 4 7/1 0.0772 0.1029 0.1029 0.257 39 28 67 58.13 41.87 2.36 0.399 0.519 140
SPARROW 2 6/1 0.1052 0.1052 0.1052 0.316 62 29.3 91 67.9 32.1 2.85 0.254 0.332 184
SPARATE 2 7/1 0.0974 0.1299 0.1299 0.325 62 44.7 107 58.13 41.87 3.46 0.251 0.332 184
ROBIN 1 6/1 0.1181 0.1182 0.1182 0.355 78.2 37 115 67.9 32.1 3.55 0.201 0.268 212
RAVEN 1/0 6/1 0.1327 0.1327 0.1327 0.398 98.6 46.6 145 67.9 32.1 4.38 0.159 0.217 242
QUAIL 2/0 6/1 0.1489 0.1489 0.1489 0.447 124.3 58.8 183 67.9 32.1 5.31 0.126 0.176 276
PIGEON 3/0 6/1 0.1672 0.1672 0.1672 0.502 156.8 74.1 230 67.9 32.1 6.62 0.1 0.144 315
PENGUIN 4/0 6/1 0.1878 0.1878 0.1878 0.563 197.7 93.4 291 67.9 32.1 8.35 0.0795 0.119 357
WAXWING 266.8 18/1 0.1217 0.1217 0.1217 0.609 250.4 39.3 289 86.45 13.55 6.88 0.0643 0.0787 449
PARTRIDGE 266.8 26/7 0.1013 0.0788 0.2364 0.642 251.7 115.6 366 68.53 31.47 11.3 0.0437 0.0779 475
OSTRICH 300 26/7 0.1074 0.0835 0.2505 0.68 283 129.9 412 68.53 31.47 12.7 0.0567 0.0693 492
MERLIN 336.4 18/1 0.1367 0.0961 0.1367 0.684 315.8 49.5 365 86.45 13.55 8.68 0.051 0.0625 519
LINNET 336.4 26/7 0.1137 0.0884 0.2652 0.72 317.3 145.7 462 68.53 31.47 14.1 0.0505 0.0618 529
ORIOLE 336.4 30/7 0.1059 0.1059 0.3177 0.741 318.1 209 526 60.53 39.65 17.3 0.0502 0.0613 535
CHICKADEE 397.5 18/7 0.1486 0.1486 0.1486 0.743 372.5 58.5 431 86.45 13.55 9.94 0.0432 0.0529 576
BRANT 397.5 24/1 0.1287 0.0858 0.2574 0.772 374.9 137.1 511 73.23 26.77 14.6 0.043 0.0526 584
IBIS 397.5 26/7 0.1236 0.0961 0.2883 0.783 375 172.2 546 68.53 31.47 16.3 0.0428 0.0523 587
LARK 397.5 30/7 0.1151 0.1151 0.3453 0.806 375.9 246.9 622 60.35 39.65 20.3 0.0425 0.0519 594
PELICAN 477 18/7 0.1628 0.1628 0.1628 0.814 447.8 70.2 517 86.45 13.55 11.8 0.036 0.0442 646
FLICKER 477 24/7 0.141 0.094 0.282 0.846 450 164.5 614 73.23 26.77 17.2 0.0358 0.0439 655
HAWK 477 26/7 0.1354 0.1053 0.3159 0.858 450 206.8 655 68.53 31.47 19.5 0.0356 0.0436 659
HEN 477 30/7 0.1261 0.1261 0.3783 0.883 451 296.3 746 60.35 39.65 23.8 0.0354 0.0433 666
OSPREY 556.5 18/1 0.1758 0.1758 0.1758 0.879 522 82 603 86.45 13.55 13.7 0.0308 0.0379 711
PARAKEET 556.5 24/7 0.1523 0.1015 0.3045 0.914 525 192 716 73.23 26.77 19.8 0.0307 0.0376 721
DOVE 556.5 26/7 0.1463 0.1138 0.3414 0.927 525 241 765 68.53 31.47 22.6 0.0306 0.0375 726
EAGLE 556.5 30/7 0.1362 0.1362 0.4086 0.953 526 346 971 60.35 39.65 27.8 0.0303 0.0372 734
PEACOCK 605 24/7 0.1588 0.1059 0.3177 0.953 571 208 779 73.23 26.77 21.6 0.0282 0.0346 760
SQUAB 605 26/7 0.1525 0.1186 0.3558 0.966 571 262 931 68.53 31.47 24.3 0.0281 0.0345 765
WOOD DUCK 605.5 30/7 0.142 0.142 0.426 0.994 572 376 946 60.35 29.55 28.9 0.0279 0.0342 774
TEAL 605.5 30/19 0.142 0.0852 0.426 0.994 572 367 939 60.89 39.11 30 0.0279 0.0342 773
KINGBOIRD 636 18/1 0.188 0.188 0.188 0.94 597 94 690 86.45 13.55 15.7 0.027 0.0332 773
SWIFT 636 36/1 0.1329 0.1329 0.1329 0.94 597 47 643 92.45 7.2 13.69 0.0271 0.0334 769
ROOK 636 24/7 0.1628 0.1085 0.3255 0.978 600 219 818 73.23 26.77 22 0.0268 0.033 784
GROSBEAK 605.5 26/7 0.1564 0.1216 0.426 0.99 600 275 874 68.53 31.47 25.2 0.0267 0.0328 789
SCOTER 605.5 30/7 0.1456 0.1456 0.4368 1.019 601 395 995 60.35 39.55 30.4 0.0256 0.0325 798
EGRET 605.5 30/19 0.1456 0.0874 0.437 1.019 601 387 987 60.89 39.11 31.5 0.0266 0.0326 798
FLAMINGO 666.6 24/7 0.1667 0.1111 0.3333 1 629 230 858 73.23 26.77 23.7 0.0256 0.0315 807
GANNET 666.6 26/7 0.1601 0.1245 0.3735 1.014 628 289 916 68.53 31.47 26.4 0.0255 0.0313 812
STILT 715.5 24/7 0.1727 0.1151 0.3453 1.036  675 247 921 73.23 26.77 25.5 0.0239 0.0294 844
STARLING 715.5 26/7 0.1659  0.1290  0.3870  1.051  675 310 984 68.53 31.47 28.4 0.0238 0.0292 849
REDWING 715.5 30/19 0.1544  0.0926  0.4630  1.081  676 435 1109 60.89 39.11 34.6 0.0236 0.029 859
COOT 795 36/1 0.1486  0.1486  0.1486  1.040  747 58 804 92.8 7.2 16.71 0.0217 0.0268 884
CUCKOO 795 24/7 0.1820  0.1213  0.3639  1.092  749 247 1023 73.23 26.77 27.9 0.0215 0.0265 901
DRAKE 795 26/7 0.1749 0.1360  0.4080  1.108 750 344 1093 68.53 31.47 31.5 0.0214 0.0263 907
TERN 795 45/7 0.1329 0.0886 0.2658 1.063 750 146 895 83.69 16.31 22.1 0.0216 0.0269 887
CONDOR 795 54/7 0.1213 0.1213 0.3639 1.092 750 274 1022 73.25 26.75 28.2 0.0215 0.0272 8889
MALLARD 795 30/19 0.1628 0.0977 0.4885 1.140  752 483 1234 60.89 39.11 38.4 0.0213 0.0261 918
RUDDY 900 45/7 0.1414 0.0943 0.2829 1.131 749 166 1013 83.69 16.31 24.4 0.0191 0.0265 958
CANARY 900 54/7 0.1291 0.1291 0.3873 1.162 849 310 1158 73.25 26.75 31.9 0.019 0.0241 961
RALL 954 45/7 0.1456 0.0971 0.2913 1.165 900 175 1074 83.69 16.31 25.9 0.018 0.0225 993
CARDINAL 954 54/7 0.1329 0.1329 0.3987 1.196 900 329 1227 73.25 26.75 33.8 0.0179 0.0228 996
ORTOLAN 1033.5 45/7 0.1515 0.1010  0.3030  1.212 975 190 1163 83.69 16.31 27.7 0.0167 0.0209 1043
CURLEW 1033.5 54/7 0.1383 0.4149 0.4149 1.246 975 356 1329 73.25 26.75 36.6 0.0165 0.0211 1047
BLUEJAY 1113 45/7 0.1573 0.1049 0.3147 1.259 1050 205 1254 83.69 16.31 29.8 0.0155 0.0194 1092
FINCH 1113 54/19 0.1436 0.0862 0.4310  1.293 1055 376 1430 73.75 26.75 39.1 0.0144 0.0197 1093
BUNTING 1192.5 45/7 0.1628 0.1085 0.3255 1.302 1125 219 1342 83.69 16.31 32 0.0144 0.0181 1139
GRACKLE 1192.5 54/19 0.1486 0.0892 0.4460  1.333 1130 403 1531 73.75 26.25 41.9 0.0144 0.0184 1140
BITTERN 1272 45/7 0.1681 0.1121 0.3363 1.345 1200 234 1432 83.69 16.31 34.1 0.0135 0.0171 1184
PHEASANT 1272 54/19 0.1535 0.0921 0.4605 1.382 1206 429 1634 73.75 26.25 34.6 0.0135 0.0173 1187
DIPPER 1351.5 45/7 0.1733 0.1155 0.3465 1.386 1275 247 1521 83.69 16.31 36.2 0.0127 0.0162 1229
MARTIN 1351.5 54/19 0.1582 0.0949 0.4745 1.424 1281 456 1735 73.75 26.25 46.3 0.0127 0.0163 1232
BOBOLINK 1431 45/7 0.1783 0.1189 0.3567 1.427 1350 263 1611 83.69 16.31 38.3 0.012 0.0153 1272
PLOVER 1431 54/19 0.1628 0.0977 0.4885 1.465 1357 483 1838 73.75 26.25 49.1 0.012 0.0155 1275
NUTHATCH 1510.5 45/7 0.1832 0.1221 0.3663 1.466 1425 277 1700 83.69 16.31 40 0.0114 0.0146 1313
PARROT 1510.5 54/19 0.1672 0.1003 0.5015 1.505 1432 510 1938 73.75 26.25 51.7 0.0114 0.0147 1318
LAPWING 1590 45/7 0.188 0.1253 0.3759 1.504 1500 292 1790 83.69 16.31 42.2 0.0108 0.0139 1354
FALCON 1590 54/19 0.1716 0.1052 0.515 1.545 1507 537 2042 73.75 26.25 54.5 0.0108 0.0140  1359
CHUKAR 1780 84/19 0.1456 0.0874 0.437 1.602 1687 387 2072 81.3 18.7 51 0.0097 0.0125 1453
BLUEBIRD 2156 84/19 0.1602 0.0961 0.4805 1.762 2044 468 2508 81.3 18.7 60.3 0.00801 0.0105 1623
KIWI 2167 72/7 0.1735 0.1157 0.3471 1.735 2054 249 2300 89.2 10.8 49.8 0.00801 0.0106 1607
