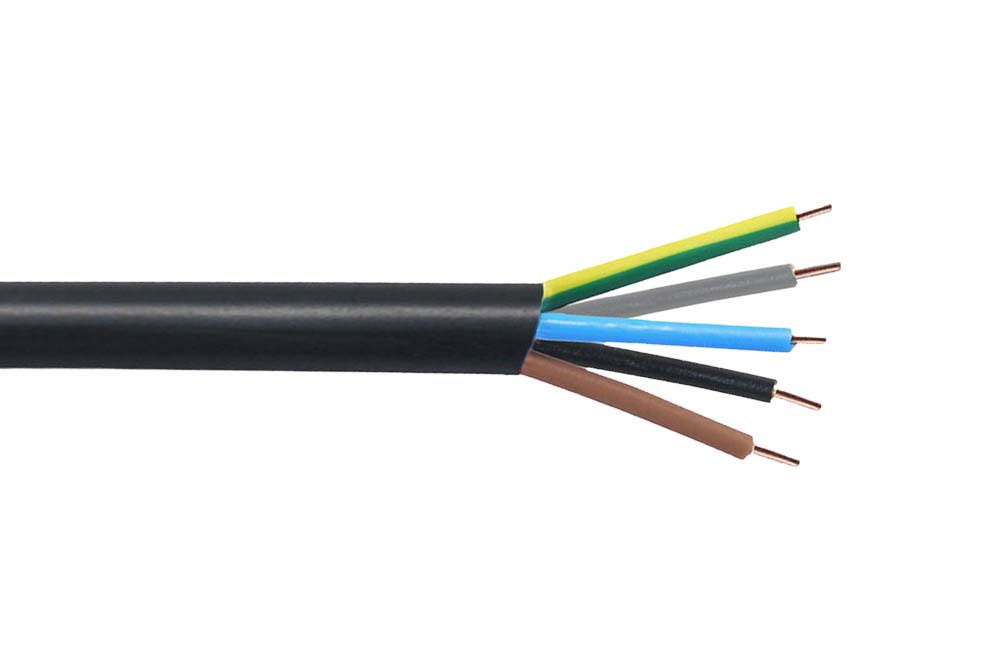

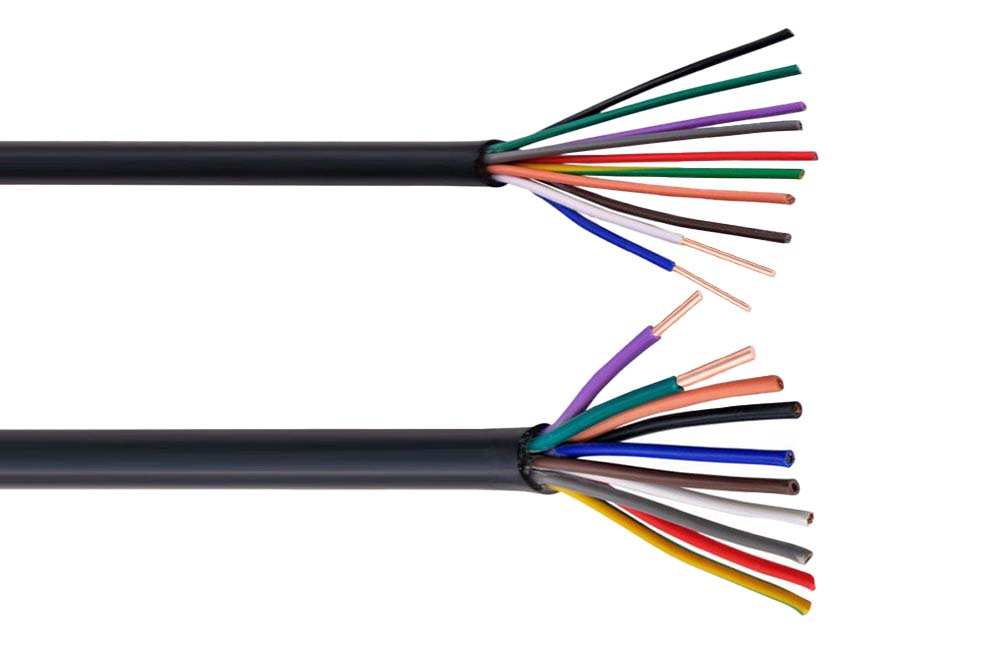

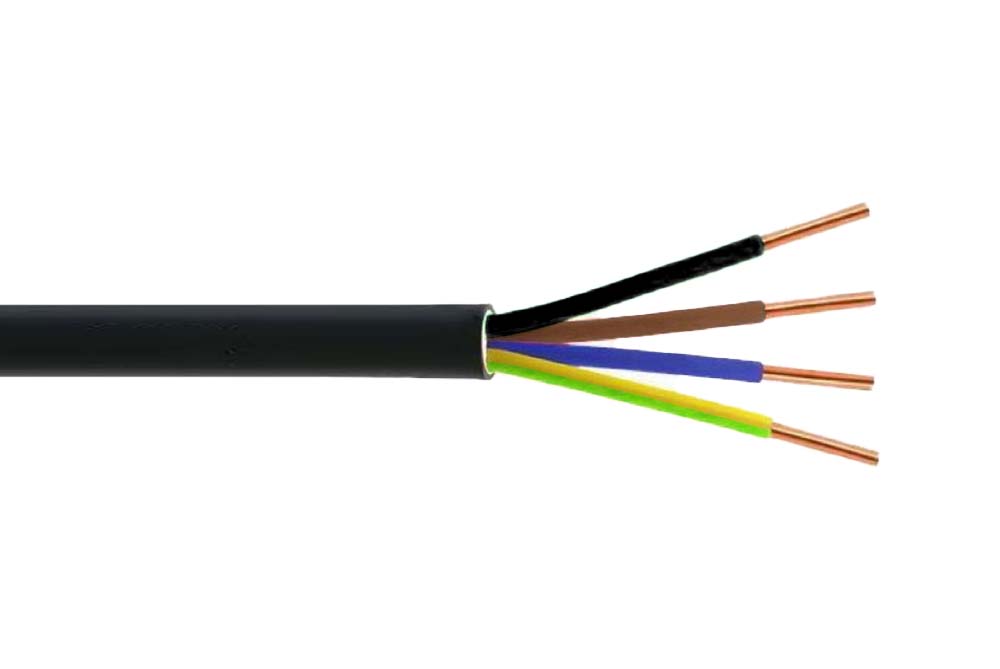

| NYY / NYY-J / NYY-O | ||
| Voltage: | 450/750V | |

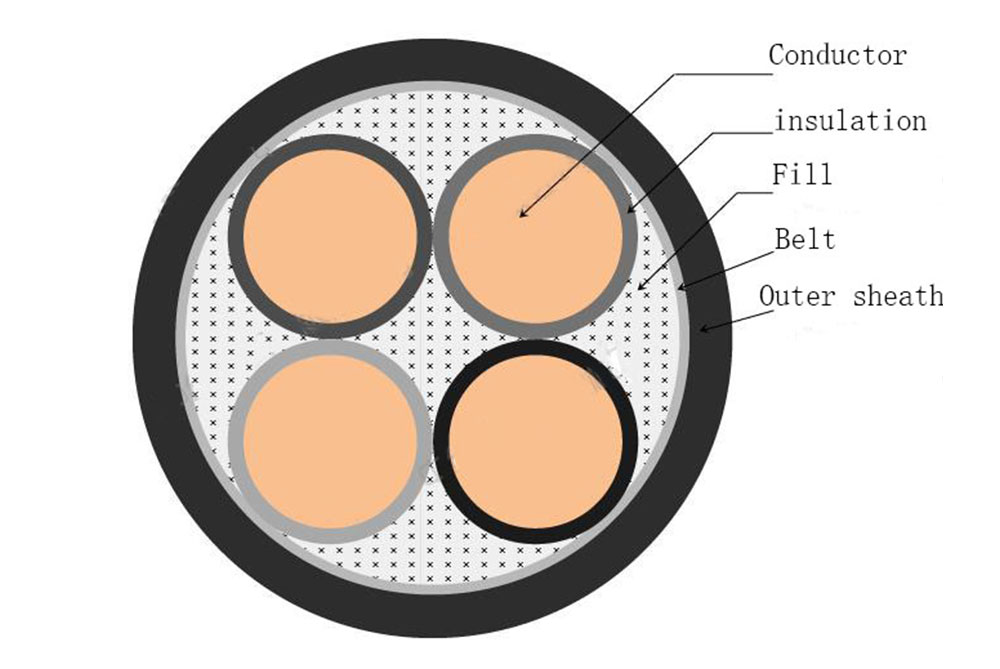

| Structure: | Conductor | Copper |
| Insulation | PVC | |
| Jacket | PVC | |
| Feature | Control cable | |
This product is suitable for automatic control, monitoring circuits, protection circuits and other systems with power frequency AC rated voltage 0.45/0.75kV and below.
Fixed laying in metallurgy, electric power, construction and other industries indoors and other occasions requiring shielding.
This product has certain combustion resistance. The production raw materials are widely sourced and cheap, and are easy to process and manufacture.
GB/T 9330-2020 Plastic insulated control cable
IEC 60502-1, VDE 0276-603, HD 603, IEC 60228
Flame retardant according to IEC/EN 60332-1-2
The power frequency AC rated voltage is 0.45/0.75kV, and the maximum voltage of the AC system should not exceed 1.0kV.
Operating temperature：Cable conductor allows the highest working temperature 70 ℃ for a long time. ;During a short circuit, the maximum temperature of the cable conductor shall not exceed 160°C and the duration shall not exceed 5s.
The ambient temperature of the cable should not be lower than -15 ° C.
The laying temperature of the cable should not be lower than 0℃.
The minimum bending radius should be no less than 6 times the outer diameter of the cable.
color spectrum：The preferred chromatogram for cables is two core’s cable, No preference for chromatography。Three-core cable: yellow/green, light blue, brown, or light blue, black, brown. Four-core cable: yellow/green, light blue, black, brown, or light blue, black, brown, black or brown. Five-core cable: yellow/green, light blue, black, brown, black or brown, or light blue, black, brown, black or brown, black or brown, (Tip: Manufacturers can edit the color spectrum according to actual conditions)
digital identification: When the insulated core is marked with a number, Insulation should be of the same color and arranged numerically, except for yellow/green combination color insulated cores
Numbers apply Arabic numerals printed on the surface of the insulated core, The color of the numbers should be the same and clearly contrast with the insulation color and the writing should be clear,
The numerical designation shall be repeated at equal intervals along the insulated core Two adjacent sets of numerical signs should be reversed. When the flag consists of a single number, then you should put a dash below the number. If the flag consists of two numbers, then they should be arranged up and down and a dash should be placed under the following numbers. The distance between two adjacent sets of digital signs should not be greater than 50mm.
Cables shall be continuously identified with the manufacturer's name, product model and rated voltage, The logo of factory’s name can be a duplicate of the manufacturer or repetitive identification.
The distance between the end of one complete sign and the beginning of the next sign The outer sheath of the cable should not exceed 550mm The cable insulation or tape should not exceed 275mm; The printed mark should be erasure resistant and not easy to fall off, and the printed content on the surface should be clear and recognizable
The length of the circle should be 100m, and the length of the disk should be greater than 100m. 24 cores and below : Short cable lengths of not less than 20 meters are allowed for delivery, The delivery length of the short section cable should not exceed 5% of the total delivery length. 24 cores or more: Short cable lengths of not less than 20 meters are allowed for delivery, The delivery length of the short section cable should not exceed 10% of the total delivery length. Or it can be delivered in any length according to mutual agreement
The measurement error of delivery length should not exceed ±0.5%.
Packaging, transportation and storage
1、Cable in rolls or coils is orderly winding and properly packed
2、The reel of cable shall comply with JB/T8137-2013,The end of cable should be reliably sealed, The cable ends extending out of the reel should be protected by a protective cover.
3、The package of cable should be attached with a label indicating: manufacturer name, model, specification, rated voltage, length, quality, manufacturing date, standard number or certification mark, correct rotation direction of the cable drum, etc.
Transportation generally takes the form of vehicles or ships. During transportation, the cables must be firmly fixed to avoid damage to the cables or disks due to collision or overturning.
Finished cables should be stored in an environment with a temperature between 0 and 40 degrees Celsius and a humidity below 85%. They should not be exposed to direct sunlight or rain. They should be properly ventilated to keep the environment dry. Cables should be stored and used in accordance with the above regulations and can generally be used for more than 25 years.
Necessary information of ordering such as cable model, specification, length, packaging method, date of delivery, etc. should be correctly indicated.
Model of cable：KVV-0.45/0.75kV
specification：24×1.5
length：10000m
packaging method： Iron plate packaging
date of delivery：Validity period days
During installation, the ambient temperature should not be lower than 0°C. If the ambient temperature measured by the thermometer is lower than 0°C, the cable should be preheated before installation. The bending radius during cable laying should be strictly controlled
In order to avoid mechanical damage inside the cable。The yellow/green double-color insulated wire cores should be connected according to the designated positions.
| Rated Voltage | No.of CORES | specification | conductor structure | outer diameter of conductor(mm) | insulation thickness(mm) | Strap specifications(mm) | Sheath thickness（mm) | reference outer diameter(mm) | reference weight(kg/km) | DC RESISTANCE (OHM/KM) | Minimum insulation resistance at operating temperature(OHM-KM) | Test voltage(KV/min) | Maximum allowable pulling force of conductor(N) |
| 450/750V | 2 | 2×0.75 | 1/0.97 | 0.97 | 0.6 | 10×0.20 | 1.2 | 7.3 | 62.2 | 24.5 | 0.012 | 3/5 | 105 |
| 2×1.0 | 1/1.13 | 1.13 | 0.6 | 10×0.20 | 1.2 | 7.7 | 70.4 | 18.1 | 0.011 | 3/5 | 140 | ||
| 2×1.5 | 1/1.38 | 1.38 | 0.7 | 10×0.20 | 1.2 | 8.6 | 90.2 | 12.1 | 0.011 | 3/5 | 210 | ||
| 2×2.5 | 1/1.78 | 1.78 | 0.8 | 15×0.20 | 1.2 | 9.8 | 123.8 | 7.41 | 0.01 | 3/5 | 350 | ||
| 2×4 | 1/2.25 | 2.25 | 0.8 | 15×0.20 | 1.2 | 10.7 | 162.2 | 4.61 | 0.0085 | 3/5 | 560 | ||
| 2×6 | 1/2.76 | 2.76 | 0.8 | 20×0.20 | 1.2 | 11.7 | 211.5 | 3.08 | 0.007 | 3/5 | 840 | ||
| 3 | 3×0.75 | 1/0.97 | 0.97 | 0.6 | 10×0.20 | 1.2 | 7.7 | 74.7 | 24.5 | 0.012 | 3/5 | 158 | |
| 3×1.0 | 1/1.13 | 1.13 | 0.6 | 10×0.20 | 1.2 | 8 | 85.7 | 18.1 | 0.011 | 3/5 | 210 | ||
| 3×1.5 | 1/1.38 | 1.38 | 0.7 | 10×0.20 | 1.2 | 9 | 112.2 | 12.1 | 0.011 | 3/5 | 315 | ||
| 3×2.5 | 1/1.78 | 1.78 | 0.8 | 15×0.20 | 1.2 | 10.3 | 157.5 | 7.41 | 0.01 | 3/5 | 525 | ||
| 3×4 | 1/2.25 | 2.25 | 0.8 | 15×0.20 | 1.2 | 11.3 | 211.2 | 4.61 | 0.0085 | 3/5 | 840 | ||
| 3×6 | 1/2.76 | 2.76 | 0.8 | 20×0.20 | 1.2 | 12.4 | 280.4 | 3.08 | 0.007 | 3/5 | 1260 | ||
| 4 | 4×0.75 | 1/0.97 | 0.97 | 0.6 | 10×0.20 | 1.2 | 8.2 | 89.5 | 24.5 | 0.012 | 3/5 | 210 | |
| 4×1.0 | 1/1.13 | 1.13 | 0.6 | 10×0.20 | 1.2 | 8.6 | 103.6 | 18.1 | 0.011 | 3/5 | 280 | ||
| 4×1.5 | 1/1.38 | 1.38 | 0.7 | 15×0.20 | 1.2 | 9.7 | 137.3 | 12.1 | 0.011 | 3/5 | 420 | ||
| 4×2.5 | 1/1.78 | 1.78 | 0.8 | 15×0.20 | 1.2 | 11.2 | 195.7 | 7.41 | 0.01 | 3/5 | 700 | ||
| 4×4 | 1/2.25 | 2.25 | 0.8 | 20×0.20 | 1.2 | 12.3 | 265.5 | 4.61 | 0.0085 | 3/5 | 1120 | ||
| 4×6 | 1/2.76 | 2.76 | 0.8 | 20×0.20 | 1.5 | 14.1 | 375.4 | 3.08 | 0.007 | 3/5 | 1680 | ||
| 5 | 5×0.75 | 1/0.97 | 0.97 | 0.6 | 10×0.20 | 1.2 | 8.9 | 105.1 | 24.5 | 0.012 | 3/5 | 263 | |
| 5×1.0 | 1/1.13 | 1.13 | 0.6 | 15×0.20 | 1.2 | 9.3 | 122.5 | 18.1 | 0.011 | 3/5 | 350 | ||
| 5×1.5 | 1/1.38 | 1.38 | 0.7 | 15×0.20 | 1.2 | 10.5 | 163.7 | 12.1 | 0.011 | 3/5 | 525 | ||
| 5×2.5 | 1/1.78 | 1.78 | 0.8 | 20×0.20 | 1.2 | 12.1 | 235.5 | 7.41 | 0.01 | 3/5 | 875 | ||
| 5×4 | 1/2.25 | 2.25 | 0.8 | 20×0.20 | 1.5 | 14 | 341.3 | 4.61 | 0.0085 | 3/5 | 1400 | ||
| 5×6 | 1/2.76 | 2.76 | 0.8 | 25×0.20 | 1.5 | 15.4 | 455.1 | 3.08 | 0.007 | 3/5 | 2100 | ||
| 6 | 6×0.5 | 1/0.80 | 0.8 | 0.6 | 10×0.20 | 1.2 | 9 | 101.8 | 36 | 3/5 | 210 | ||
| 6×0.75 | 1/0.97 | 0.97 | 0.6 | 15×0.20 | 1.2 | 9.5 | 121.3 | 24.5 | 0.012 | 3/5 | 315 | ||
| 6×1.0 | 1/1.13 | 1.13 | 0.6 | 15×0.20 | 1.2 | 10 | 142 | 18.1 | 0.011 | 3/5 | 420 | ||
| 6×1.5 | 1/1.38 | 1.38 | 0.7 | 15×0.20 | 1.2 | 11.3 | 190.9 | 12.1 | 0.011 | 3/5 | 630 | ||
| 6×2.5 | 1/1.78 | 1.78 | 0.8 | 20×0.20 | 1.5 | 13.7 | 295.5 | 7.41 | 0.01 | 3/5 | 1050 | ||
| 6×4 | 1/2.25 | 2.25 | 0.8 | 25×0.20 | 1.5 | 15.2 | 400.8 | 4.61 | 0.0085 | 3/5 | 1680 | ||
| 6×6 | 1/2.76 | 2.76 | 0.8 | 25×0.20 | 1.5 | 16.7 | 536.8 | 3.08 | 0.007 | 3/5 | 2520 | ||
| 7 | 7×0.75 | 1/0.97 | 0.97 | 0.6 | 15×0.20 | 1.2 | 9.5 | 127.4 | 24.5 | 0.012 | 3/5 | 368 | |
| 7×1.0 | 1/1.13 | 1.13 | 0.6 | 15×0.20 | 1.2 | 10 | 150.1 | 18.1 | 0.011 | 3/5 | 490 | ||
| 7×1.5 | 1/1.38 | 1.38 | 0.7 | 15×0.20 | 1.2 | 11.3 | 203.1 | 12.1 | 0.011 | 3/5 | 735 | ||
| 7×2.5 | 1/1.78 | 1.78 | 0.8 | 20×0.20 | 1.5 | 13.7 | 315.6 | 7.41 | 0.01 | 3/5 | 1225 | ||
| 7×4 | 1/2.25 | 2.25 | 0.8 | 25×0.20 | 1.5 | 15.2 | 432.4 | 4.61 | 0.0085 | 3/5 | 1960 | ||
| 7×6 | 1/2.76 | 2.76 | 0.8 | 25×0.20 | 1.5 | 16.7 | 584.1 | 3.08 | 0.007 | 3/5 | 2940 | ||
| 8 | 8×0.75 | 1/0.97 | 0.97 | 0.6 | 15×0.20 | 1.2 | 10.2 | 142.4 | 24.5 | 0.012 | 3/5 | 420 | |
| 8×1.0 | 1/1.13 | 1.13 | 0.6 | 15×0.20 | 1.2 | 10.7 | 168.3 | 18.1 | 0.011 | 3/5 | 560 | ||
| 8×1.5 | 1/1.38 | 1.38 | 0.7 | 20×0.20 | 1.2 | 12.2 | 228.4 | 12.1 | 0.011 | 3/5 | 840 | ||
| 8×2.5 | 1/1.78 | 1.78 | 0.8 | 20×0.20 | 1.5 | 14.8 | 355.2 | 7.41 | 0.01 | 3/5 | 1400 | ||
| 8×4 | 1/2.25 | 2.25 | 0.8 | 25×0.20 | 1.5 | 16.3 | 488.4 | 4.61 | 0.0085 | 3/5 | 2240 | ||
| 8×6 | 1/2.76 | 2.76 | 0.8 | 30×0.20 | 1.5 | 18 | 661.2 | 3.08 | 0.007 | 3/5 | 3360 | ||
| 9 | 9×0.5 | 1/0.80 | 0.8 | 0.6 | 15×0.20 | 1.2 | 10.4 | 131.4 | 36 | 3/5 | 315 | ||
| 9×0.75 | 1/0.97 | 0.97 | 0.6 | 15×0.20 | 1.2 | 11 | 158.8 | 24.5 | 0.012 | 3/5 | 473 | ||
| 9×1.0 | 1/1.13 | 1.13 | 0.6 | 15×0.20 | 1.2 | 11.6 | 187.8 | 18.1 | 0.011 | 3/5 | 630 | ||
| 9×1.5 | 1/1.38 | 1.38 | 0.7 | 20×0.20 | 1.5 | 13.9 | 274.7 | 12.1 | 0.011 | 3/5 | 945 | ||
| 9×2.5 | 1/1.78 | 1.78 | 0.8 | 25×0.20 | 1.5 | 16.1 | 397.5 | 7.41 | 0.01 | 3/5 | 1575 | ||
| 9×4 | 1/2.25 | 2.25 | 0.8 | 30×0.20 | 1.5 | 17.9 | 547.2 | 4.61 | 0.0085 | 3/5 | 2520 | ||
| 9×6 | 1/2.76 | 2.76 | 0.8 | 30×0.20 | 1.7 | 20.1 | 760.3 | 3.08 | 0.007 | 3/5 | 3780 | ||
| 10 | 10×0.75 | 1/0.97 | 0.97 | 0.6 | 15×0.20 | 1.2 | 11.7 | 177.1 | 24.5 | 0.012 | 3/5 | 525 | |
| 10×1.0 | 1/1.13 | 1.13 | 0.6 | 20×0.20 | 1.2 | 12.3 | 209.8 | 18.1 | 0.011 | 3/5 | 700 | ||
| 10×1.5 | 1/1.38 | 1.38 | 0.7 | 20×0.20 | 1.5 | 14.7 | 306.6 | 12.1 | 0.011 | 3/5 | 1050 | ||
| 10×2.5 | 1/1.78 | 1.78 | 0.8 | 25×0.20 | 1.5 | 17.1 | 445.1 | 7.41 | 0.01 | 3/5 | 1750 | ||
| 10×4 | 1/2.25 | 2.25 | 0.8 | 30×0.20 | 1.5 | 19 | 613.5 | 4.61 | 0.0085 | 3/5 | 2800 | ||
| 10×6 | 1/2.76 | 2.76 | 0.8 | 35×0.20 | 1.7 | 21.4 | 851.9 | 3.08 | 0.007 | 3/5 | 4200 | ||
| 11 | 11×0.5 | 1/0.80 | 0.8 | 0.6 | 15×0.20 | 1.2 | 11.3 | 153.9 | 36 | 3/5 | 385 | ||
| 11×0.75 | 1/0.97 | 0.97 | 0.6 | 20×0.20 | 1.2 | 12 | 186.9 | 24.5 | 0.012 | 3/5 | 578 | ||
| 11×1.0 | 1/1.13 | 1.13 | 0.6 | 20×0.20 | 1.2 | 12.7 | 222.1 | 18.1 | 0.011 | 3/5 | 770 | ||
| 11×1.5 | 1/1.38 | 1.38 | 0.7 | 25×0.20 | 1.5 | 15.2 | 324.9 | 12.1 | 0.011 | 3/5 | 1155 | ||
| 11×2.5 | 1/1.78 | 1.78 | 0.8 | 30×0.20 | 1.5 | 17.6 | 473.3 | 7.41 | 0.01 | 3/5 | 1925 | ||
| 11×4 | 1/2.25 | 2.25 | 0.8 | 30×0.20 | 1.5 | 19.6 | 655 | 4.61 | 0.0085 | 3/5 | 3080 | ||
| 11×6 | 1/2.76 | 2.76 | 0.8 | 35×0.20 | 1.7 | 22.1 | 911.8 | 3.08 | 0.007 | 3/5 | 4620 | ||
| 12 | 12×0.75 | 1/0.97 | 0.97 | 0.6 | 20×0.20 | 1.2 | 12 | 197.9 | 24.5 | 0.012 | 3/5 | 630 | |
| 12×1.0 | 1/1.13 | 1.13 | 0.6 | 20×0.20 | 1.2 | 12.7 | 236 | 18.1 | 0.011 | 3/5 | 840 | ||
| 12×1.5 | 1/1.38 | 1.38 | 0.7 | 25×0.20 | 1.5 | 15.2 | 345.1 | 12.1 | 0.011 | 3/5 | 1260 | ||
| 12×2.5 | 1/1.78 | 1.78 | 0.8 | 30×0.20 | 1.5 | 17.6 | 505.3 | 7.41 | 0.01 | 3/5 | 2100 | ||
| 12×4 | 1/2.25 | 2.25 | 0.8 | 30×0.20 | 1.5 | 19.6 | 702.2 | 4.61 | 0.0085 | 3/5 | 3360 | ||
| 12×6 | 1/2.76 | 2.76 | 0.8 | 35×0.20 | 1.7 | 22.1 | 979.1 | 3.08 | 0.007 | 3/5 | 5040 | ||
| 13 | 13×0.5 | 1/0.80 | 0.8 | 0.6 | 20×0.20 | 1.2 | 11.8 | 174.3 | 36 | 3/5 | 455 | ||
| 13×0.75 | 1/0.97 | 0.97 | 0.6 | 20×0.20 | 1.2 | 12.6 | 212.8 | 24.5 | 0.012 | 3/5 | 683 | ||
| 13×1.0 | 1/1.13 | 1.13 | 0.6 | 20×0.20 | 1.5 | 13.9 | 273.1 | 18.1 | 0.011 | 3/5 | 910 | ||
| 13×1.5 | 1/1.38 | 1.38 | 0.7 | 25×0.20 | 1.5 | 15.9 | 371.4 | 12.1 | 0.011 | 3/5 | 1365 | ||
| 13×2.5 | 1/1.78 | 1.78 | 0.8 | 30×0.20 | 1.5 | 18.5 | 544.8 | 7.41 | 0.01 | 3/5 | 2275 | ||
| 13×4 | 1/2.25 | 2.25 | 0.8 | 35×0.20 | 1.7 | 21 | 777.6 | 4.61 | 0.0085 | 3/5 | 3640 | ||
| 13×6 | 1/2.76 | 2.76 | 0.8 | 40×0.20 | 1.7 | 23.3 | 1057.4 | 3.08 | 0.007 | 3/5 | 5460 | ||
| 14 | 14×0.75 | 1/0.97 | 0.97 | 0.6 | 20×0.20 | 1.2 | 12.6 | 223.9 | 24.5 | 0.012 | 3/5 | 735 | |
| 14×1.0 | 1/1.13 | 1.13 | 0.6 | 20×0.20 | 1.5 | 13.9 | 287 | 18.1 | 0.011 | 3/5 | 980 | ||
| 14×1.5 | 1/1.38 | 1.38 | 0.7 | 25×0.20 | 1.5 | 15.9 | 391.6 | 12.1 | 0.011 | 3/5 | 1470 | ||
| 14×2.5 | 1/1.78 | 1.78 | 0.8 | 30×0.20 | 1.5 | 18.5 | 576.9 | 7.41 | 0.01 | 3/5 | 2450 | ||
| 14×4 | 1/2.25 | 2.25 | 0.8 | 35×0.20 | 1.7 | 21 | 824.8 | 4.61 | 0.0085 | 3/5 | 3920 | ||
| 14×6 | 1/2.76 | 2.76 | 0.8 | 40×0.20 | 1.7 | 23.3 | 1124.6 | 3.08 | 0.007 | 3/5 | 5880 | ||
| 15 | 15×0.5 | 1/0.80 | 0.8 | 0.6 | 20×0.20 | 1.2 | 12.4 | 195.2 | 36 | 3/5 | 525 | ||
| 15×0.75 | 1/0.97 | 0.97 | 0.6 | 20×0.20 | 1.5 | 13.8 | 258.4 | 24.5 | 0.012 | 3/5 | 788 | ||
| 15×1.0 | 1/1.13 | 1.13 | 0.6 | 20×0.20 | 1.5 | 14.6 | 306.7 | 18.1 | 0.011 | 3/5 | 1050 | ||
| 15×1.5 | 1/1.38 | 1.38 | 0.7 | 25×0.20 | 1.5 | 16.7 | 419 | 12.1 | 0.011 | 3/5 | 1575 | ||
| 15×2.5 | 1/1.78 | 1.78 | 0.8 | 30×0.20 | 1.7 | 19.9 | 636.4 | 7.41 | 0.01 | 3/5 | 2625 | ||
| 15×4 | 1/2.25 | 2.25 | 0.8 | 35×0.20 | 1.7 | 22.1 | 883.6 | 4.61 | 0.0085 | 3/5 | 4200 | ||
| 15×6 | 1/2.76 | 2.76 | 0.8 | 40×0.20 | 1.7 | 24.5 | 1205.1 | 3.08 | 0.007 | 3/5 | 6300 | ||
| 16 | 16×0.75 | 1/0.97 | 0.97 | 0.6 | 20×0.20 | 1.5 | 13.8 | 269.5 | 24.5 | 0.012 | 3/5 | 840 | |
| 16×1.0 | 1/1.13 | 1.13 | 0.6 | 20×0.20 | 1.5 | 14.6 | 320.6 | 18.1 | 0.011 | 3/5 | 1120 | ||
| 16×1.5 | 1/1.38 | 1.38 | 0.7 | 25×0.20 | 1.5 | 16.7 | 439.2 | 12.1 | 0.011 | 3/5 | 1680 | ||
| 16×2.5 | 1/1.78 | 1.78 | 0.8 | 30×0.20 | 1.7 | 19.9 | 668.4 | 7.41 | 0.01 | 3/5 | 2800 | ||
| 17 | 17×0.5 | 1/0.80 | 0.8 | 0.6 | 20×0.20 | 1.5 | 13.6 | 235.4 | 36 | 3/5 | 595 | ||
| 17×0.75 | 1/0.97 | 0.97 | 0.6 | 20×0.20 | 1.5 | 14.5 | 286.4 | 24.5 | 0.012 | 3/5 | 893 | ||
| 17×1.0 | 1/1.13 | 1.13 | 0.6 | 25×0.20 | 1.5 | 15.3 | 340.9 | 18.1 | 0.011 | 3/5 | 1190 | ||
| 17×1.5 | 1/1.38 | 1.38 | 0.7 | 30×0.20 | 1.5 | 17.5 | 467.4 | 12.1 | 0.011 | 3/5 | 1785 | ||
| 17×2.5 | 1/1.78 | 1.78 | 0.8 | 35×0.20 | 1.7 | 20.9 | 711.5 | 7.41 | 0.01 | 3/5 | 2975 | ||
| 17×4 | 1/2.25 | 2.25 | 0.8 | 40×0.20 | 1.7 | 23.3 | 991 | 4.61 | 0.0085 | 3/5 | 4760 | ||
| 17×6 | 1/2.76 | 2.76 | 0.8 | 45×0.20 | 1.7 | 25.8 | 1354.8 | 3.08 | 0.007 | 3/5 | 7140 | ||
| 18 | 18×0.5 | 1/0.80 | 0.8 | 0.6 | 20×0.20 | 1.5 | 13.6 | 243.8 | 36 | 3/5 | 630 | ||
| 18×0.75 | 1/0.97 | 0.97 | 0.6 | 20×0.20 | 1.5 | 14.5 | 297.5 | 24.5 | 0.012 | 3/5 | 945 | ||
| 18×1.0 | 1/1.13 | 1.13 | 0.6 | 25×0.20 | 1.5 | 15.3 | 354.7 | 18.1 | 0.011 | 3/5 | 1260 | ||
| 18×1.5 | 1/1.38 | 1.38 | 0.7 | 30×0.20 | 1.5 | 17.5 | 487.7 | 12.1 | 0.011 | 3/5 | 1890 | ||
| 18×2.5 | 1/1.78 | 1.78 | 0.8 | 35×0.20 | 1.7 | 20.9 | 743.5 | 7.41 | 0.01 | 3/5 | 3150 | ||
| 18×4 | 1/2.25 | 2.25 | 0.8 | 40×0.20 | 1.7 | 23.3 | 1038.2 | 4.61 | 0.0085 | 3/5 | 5040 | ||
| 18×6 | 1/2.76 | 2.76 | 0.8 | 45×0.20 | 1.7 | 25.8 | 1422 | 3.08 | 0.007 | 3/5 | 7560 | ||
| 19 | 19×0.75 | 1/0.97 | 0.97 | 0.6 | 20×0.20 | 1.5 | 14.5 | 306.3 | 24.5 | 0.012 | 3/5 | 998 | |
| 19×1.0 | 1/1.13 | 1.13 | 0.6 | 25×0.20 | 1.5 | 15.3 | 366.1 | 18.1 | 0.011 | 3/5 | 1330 | ||
| 19×1.5 | 1/1.38 | 1.38 | 0.7 | 30×0.20 | 1.5 | 17.5 | 504.4 | 12.1 | 0.011 | 3/5 | 1995 | ||
| 19×2.5 | 1/1.78 | 1.78 | 0.8 | 35×0.20 | 1.7 | 20.9 | 770.3 | 7.41 | 0.01 | 3/5 | 3325 | ||
| 20 | 20×0.5 | 1/0.80 | 0.8 | 0.6 | 20×0.20 | 1.5 | 13.9 | 261.2 | 36 | 3/5 | 700 | ||
| 20×0.75 | 1/0.97 | 0.97 | 0.6 | 20×0.20 | 1.5 | 14.8 | 319.9 | 24.5 | 0.012 | 3/5 | 1050 | ||
| 20×1.0 | 1/1.13 | 1.13 | 0.6 | 25×0.20 | 1.5 | 15.6 | 382.7 | 18.1 | 0.011 | 3/5 | 1400 | ||
| 20×1.5 | 1/1.38 | 1.38 | 0.7 | 30×0.20 | 1.5 | 17.9 | 527.9 | 12.1 | 0.011 | 3/5 | 2100 | ||
| 20×2.5 | 1/1.78 | 1.78 | 0.8 | 35×0.20 | 1.7 | 21.4 | 806.7 | 7.41 | 0.01 | 3/5 | 3500 | ||
| 20×4 | 1/2.25 | 2.25 | 0.8 | 40×0.20 | 1.7 | 23.8 | 1130.8 | 4.61 | 0.0085 | 3/5 | 5600 | ||
| 20×6 | 1/2.76 | 2.76 | 0.8 | 45×0.20 | 1.7 | 26.5 | 1553.4 | 3.08 | 0.007 | 3/5 | 8400 | ||
| 21 | 21×0.5 | 1/0.80 | 0.8 | 0.6 | 20×0.20 | 1.5 | 14.2 | 271.8 | 36 | 3/5 | 735 | ||
| 21×0.75 | 1/0.97 | 0.97 | 0.6 | 25×0.20 | 1.5 | 15.1 | 333.3 | 24.5 | 0.012 | 3/5 | 1103 | ||
| 21×1.0 | 1/1.13 | 1.13 | 0.6 | 25×0.20 | 1.5 | 16 | 399.1 | 18.1 | 0.011 | 3/5 | 1470 | ||
| 21×1.5 | 1/1.38 | 1.38 | 0.7 | 30×0.20 | 1.5 | 18.3 | 551.1 | 12.1 | 0.011 | 3/5 | 2205 | ||
| 21×2.5 | 1/1.78 | 1.78 | 0.8 | 35×0.20 | 1.7 | 21.9 | 842.9 | 7.41 | 0.01 | 3/5 | 3675 | ||
| 21×4 | 1/2.25 | 2.25 | 0.8 | 40×0.20 | 1.7 | 24.4 | 1182.8 | 4.61 | 0.0085 | 3/5 | 5880 | ||
| 21×6 | 1/2.76 | 2.76 | 0.8 | 45×0.20 | 1.7 | 27.1 | 1626 | 3.08 | 0.007 | 3/5 | 8820 | ||
| 22 | 22×0.5 | 1/0.80 | 0.8 | 0.6 | 25×0.20 | 1.5 | 15 | 286.2 | 36 | 3/5 | 770 | ||
| 22×0.75 | 1/0.97 | 0.97 | 0.6 | 25×0.20 | 1.5 | 16 | 350.9 | 24.5 | 0.012 | 3/5 | 1155 | ||
| 22×1.0 | 1/1.13 | 1.13 | 0.6 | 25×0.20 | 1.5 | 16.9 | 420 | 18.1 | 0.011 | 3/5 | 1540 | ||
| 22×1.5 | 1/1.38 | 1.38 | 0.7 | 30×0.20 | 1.7 | 19.9 | 598.3 | 12.1 | 0.011 | 3/5 | 2310 | ||
| 22×2.5 | 1/1.78 | 1.78 | 0.8 | 40×0.20 | 1.7 | 23.3 | 886.5 | 7.41 | 0.01 | 3/5 | 3850 | ||
| 22×4 | 1/2.25 | 2.25 | 0.8 | 45×0.20 | 1.7 | 26 | 1243.1 | 4.61 | 0.0085 | 3/5 | 6160 | ||
| 22×6 | 1/2.76 | 2.76 | 0.8 | 50×0.20 | 1.7 | 28.9 | 1708 | 3.08 | 0.007 | 3/5 | 9240 | ||
| 23 | 23×0.5 | 1/0.80 | 0.8 | 0.6 | 25×0.20 | 1.5 | 15.6 | 299.2 | 36 | 3/5 | 805 | ||
| 23×0.75 | 1/0.97 | 0.97 | 0.6 | 25×0.20 | 1.5 | 16.6 | 366.8 | 24.5 | 0.012 | 3/5 | 1208 | ||
| 23×1.0 | 1/1.13 | 1.13 | 0.6 | 30×0.20 | 1.5 | 17.6 | 439.1 | 18.1 | 0.011 | 3/5 | 1610 | ||
| 23×1.5 | 1/1.38 | 1.38 | 0.7 | 35×0.20 | 1.7 | 20.7 | 625.6 | 12.1 | 0.011 | 3/5 | 2415 | ||
| 23×2.5 | 1/1.78 | 1.78 | 0.8 | 40×0.20 | 1.7 | 24.3 | 927.1 | 7.41 | 0.01 | 3/5 | 4025 | ||
| 23×4 | 1/2.25 | 2.25 | 0.8 | 45×0.20 | 1.7 | 27.1 | 1300.1 | 4.61 | 0.0085 | 3/5 | 6440 | ||
| 23×6 | 1/2.76 | 2.76 | 0.8 | 50×0.20 | 1.7 | 30.2 | 1786.3 | 3.08 | 0.007 | 3/5 | 9660 | ||
| 24 | 24×0.75 | 1/0.97 | 0.97 | 0.6 | 25×0.20 | 1.5 | 16.6 | 377.9 | 24.5 | 0.012 | 3/5 | 1260 | |
| 24×1.0 | 1/1.13 | 1.13 | 0.6 | 30×0.20 | 1.5 | 17.6 | 453 | 18.1 | 0.011 | 3/5 | 1680 | ||
| 24×1.5 | 1/1.38 | 1.38 | 0.7 | 35×0.20 | 1.7 | 20.7 | 645.9 | 12.1 | 0.011 | 3/5 | 2520 | ||
| 24×2.5 | 1/1.78 | 1.78 | 0.8 | 40×0.20 | 1.7 | 24.3 | 959.1 | 7.41 | 0.01 | 3/5 | 4200 | ||
| 25 | 25×0.5 | 1/0.80 | 0.8 | 0.6 | 25×0.20 | 1.5 | 15.9 | 318.5 | 36 | 3/5 | 875 | ||
| 25×0.75 | 1/0.97 | 0.97 | 0.6 | 25×0.20 | 1.5 | 17 | 391.5 | 24.5 | 0.012 | 3/5 | 1313 | ||
| 25×1.0 | 1/1.13 | 1.13 | 0.6 | 30×0.20 | 1.5 | 17.9 | 469.6 | 18.1 | 0.011 | 3/5 | 1750 | ||
| 25×1.5 | 1/1.38 | 1.38 | 0.7 | 35×0.20 | 1.7 | 21.1 | 669.9 | 12.1 | 0.011 | 3/5 | 2625 | ||
| 25×2.5 | 1/1.78 | 1.78 | 0.8 | 40×0.20 | 1.7 | 24.8 | 995.7 | 7.41 | 0.01 | 3/5 | 4375 | ||
| 25×4 | 1/2.25 | 2.25 | 0.8 | 45×0.20 | 1.7 | 27.7 | 1399.7 | 4.61 | 0.0085 | 3/5 | 7000 | ||
| 25×6 | 1/2.76 | 2.76 | 0.8 | 55×0.20 | 2 | 31.4 | 1970.8 | 3.08 | 0.007 | 3/5 | 10500 | ||
| 26 | 26×0.5 | 1/0.80 | 0.8 | 0.6 | 25×0.20 | 1.5 | 15.9 | 326.9 | 36 | 3/5 | 910 | ||
| 26×0.75 | 1/0.97 | 0.97 | 0.6 | 25×0.20 | 1.5 | 17 | 402.5 | 24.5 | 0.012 | 3/5 | 1365 | ||
| 26×1.0 | 1/1.13 | 1.13 | 0.6 | 30×0.20 | 1.5 | 17.9 | 483.5 | 18.1 | 0.011 | 3/5 | 1820 | ||
| 26×1.5 | 1/1.38 | 1.38 | 0.7 | 35×0.20 | 1.7 | 21.1 | 690.1 | 12.1 | 0.011 | 3/5 | 2730 | ||
| 26×2.5 | 1/1.78 | 1.78 | 0.8 | 40×0.20 | 1.7 | 24.8 | 1027.8 | 7.41 | 0.01 | 3/5 | 4550 | ||
| 26×4 | 1/2.25 | 2.25 | 0.8 | 45×0.20 | 1.7 | 27.7 | 1446.9 | 4.61 | 0.0085 | 3/5 | 7280 | ||
| 26×6 | 1/2.76 | 2.76 | 0.8 | 55×0.20 | 2 | 31.4 | 2038 | 3.08 | 0.007 | 3/5 | 10920 | ||
| 27 | 27×0.75 | 1/0.97 | 0.97 | 0.6 | 25×0.20 | 1.5 | 17 | 413.5 | 24.5 | 0.012 | 3/5 | 1418 | |
| 27×1.0 | 1/1.13 | 1.13 | 0.6 | 30×0.20 | 1.5 | 17.9 | 497.4 | 18.1 | 0.011 | 3/5 | 1890 | ||
| 27×1.5 | 1/1.38 | 1.38 | 0.7 | 35×0.20 | 1.7 | 21.1 | 710.4 | 12.1 | 0.011 | 3/5 | 2835 | ||
| 27×2.5 | 1/1.78 | 1.78 | 0.8 | 40×0.20 | 1.7 | 24.8 | 1059.8 | 7.41 | 0.01 | 3/5 | 4725 | ||
| 28 | 28×0.5 | 1/0.80 | 0.8 | 0.6 | 25×0.20 | 1.5 | 16.4 | 347.9 | 36 | 3/5 | 980 | ||
| 28×0.75 | 1/0.97 | 0.97 | 0.6 | 30×0.20 | 1.5 | 17.5 | 429.2 | 24.5 | 0.012 | 3/5 | 1470 | ||
| 28×1.0 | 1/1.13 | 1.13 | 0.6 | 30×0.20 | 1.5 | 18.5 | 516.2 | 18.1 | 0.011 | 3/5 | 1960 | ||
| 28×1.5 | 1/1.38 | 1.38 | 0.7 | 35×0.20 | 1.7 | 21.8 | 737.3 | 12.1 | 0.011 | 3/5 | 2940 | ||
| 28×2.5 | 1/1.78 | 1.78 | 0.8 | 45×0.20 | 1.7 | 25.7 | 1100.2 | 7.41 | 0.01 | 3/5 | 4900 | ||
| 28×4 | 1/2.25 | 2.25 | 0.8 | 50×0.20 | 1.7 | 28.7 | 1551 | 4.61 | 0.0085 | 3/5 | 7840 | ||
| 28×6 | 1/2.76 | 2.76 | 0.8 | 55×0.20 | 2 | 32.6 | 2185.2 | 3.08 | 0.007 | 3/5 | 11760 | ||
| 29 | 29×0.5 | 1/0.80 | 0.8 | 0.6 | 25×0.20 | 1.5 | 16.4 | 356.4 | 36 | 3/5 | 1015 | ||
| 29×0.75 | 1/0.97 | 0.97 | 0.6 | 30×0.20 | 1.5 | 17.5 | 440.2 | 24.5 | 0.012 | 3/5 | 1523 | ||
| 29×1.0 | 1/1.13 | 1.13 | 0.6 | 30×0.20 | 1.5 | 18.5 | 530 | 18.1 | 0.011 | 3/5 | 2030 | ||
| 29×1.5 | 1/1.38 | 1.38 | 0.7 | 35×0.20 | 1.7 | 21.8 | 757.6 | 12.1 | 0.011 | 3/5 | 3045 | ||
| 29×2.5 | 1/1.78 | 1.78 | 0.8 | 45×0.20 | 1.7 | 25.7 | 1132.2 | 7.41 | 0.01 | 3/5 | 5075 | ||
| 29×4 | 1/2.25 | 2.25 | 0.8 | 50×0.20 | 1.7 | 28.7 | 1598.2 | 4.61 | 0.0085 | 3/5 | 8120 | ||
| 29×6 | 1/2.76 | 2.76 | 0.8 | 55×0.20 | 2 | 32.6 | 2252.4 | 3.08 | 0.007 | 3/5 | 12180 | ||
| 30 | 30×0.75 | 1/0.97 | 0.97 | 0.6 | 30×0.20 | 1.5 | 17.5 | 451.3 | 24.5 | 0.012 | 3/5 | 1575 | |
| 30×1.0 | 1/1.13 | 1.13 | 0.6 | 30×0.20 | 1.5 | 18.5 | 543.9 | 18.1 | 0.011 | 3/5 | 2100 | ||
| 30×1.5 | 1/1.38 | 1.38 | 0.7 | 35×0.20 | 1.7 | 21.8 | 777.8 | 12.1 | 0.011 | 3/5 | 3150 | ||
| 30×2.5 | 1/1.78 | 1.78 | 0.8 | 45×0.20 | 1.7 | 25.7 | 1164.2 | 7.41 | 0.01 | 3/5 | 5250 | ||
| 31 | 31×0.5 | 1/0.80 | 0.8 | 0.6 | 25×0.20 | 1.5 | 17 | 378.1 | 36 | 3/5 | 1085 | ||
| 31×0.75 | 1/0.97 | 0.97 | 0.6 | 30×0.20 | 1.5 | 18.1 | 467.7 | 24.5 | 0.012 | 3/5 | 1628 | ||
| 31×1.0 | 1/1.13 | 1.13 | 0.6 | 30×0.20 | 1.5 | 19.2 | 563.6 | 18.1 | 0.011 | 3/5 | 2170 | ||
| 31×1.5 | 1/1.38 | 1.38 | 0.7 | 35×0.20 | 1.7 | 22.6 | 806 | 12.1 | 0.011 | 3/5 | 3255 | ||
| 31×2.5 | 1/1.78 | 1.78 | 0.8 | 45×0.20 | 1.7 | 26.7 | 1206.1 | 7.41 | 0.01 | 3/5 | 5425 | ||
| 31×4 | 1/2.25 | 2.25 | 0.8 | 50×0.20 | 2 | 30.4 | 1746.7 | 4.61 | 0.0085 | 3/5 | 8680 | ||
| 31×6 | 1/2.76 | 2.76 | 0.8 | 60×0.20 | 2 | 33.8 | 2401.9 | 3.08 | 0.007 | 3/5 | 13020 | ||
| 32 | 32×0.5 | 1/0.80 | 0.8 | 0.6 | 25×0.20 | 1.5 | 17 | 386.5 | 36 | 3/5 | 1120 | ||
| 32×0.75 | 1/0.97 | 0.97 | 0.6 | 30×0.20 | 1.5 | 18.1 | 478.7 | 24.5 | 0.012 | 3/5 | 1680 | ||
| 32×1.0 | 1/1.13 | 1.13 | 0.6 | 30×0.20 | 1.5 | 19.2 | 577.4 | 18.1 | 0.011 | 3/5 | 2240 | ||
| 32×1.5 | 1/1.38 | 1.38 | 0.7 | 35×0.20 | 1.7 | 22.6 | 826.2 | 12.1 | 0.011 | 3/5 | 3360 | ||
| 32×2.5 | 1/1.78 | 1.78 | 0.8 | 45×0.20 | 1.7 | 26.7 | 1238.1 | 7.41 | 0.01 | 3/5 | 5600 | ||
| 32×4 | 1/2.25 | 2.25 | 0.8 | 50×0.20 | 2 | 30.4 | 1793.9 | 4.61 | 0.0085 | 3/5 | 8960 | ||
| 32×6 | 1/2.76 | 2.76 | 0.8 | 60×0.20 | 2 | 33.8 | 2469.1 | 3.08 | 0.007 | 3/5 | 13440 | ||
| 33 | 33×0.5 | 1/0.80 | 0.8 | 0.6 | 25×0.20 | 1.5 | 17 | 395 | 36 | 3/5 | 1155 | ||
| 33×0.75 | 1/0.97 | 0.97 | 0.6 | 30×0.20 | 1.5 | 18.1 | 489.7 | 24.5 | 0.012 | 3/5 | 1733 | ||
| 33×1.0 | 1/1.13 | 1.13 | 0.6 | 30×0.20 | 1.5 | 19.2 | 591.3 | 18.1 | 0.011 | 3/5 | 2310 | ||
| 33×1.5 | 1/1.38 | 1.38 | 0.7 | 35×0.20 | 1.7 | 22.6 | 846.5 | 12.1 | 0.011 | 3/5 | 3465 | ||
| 33×2.5 | 1/1.78 | 1.78 | 0.8 | 45×0.20 | 1.7 | 26.7 | 1270.2 | 7.41 | 0.01 | 3/5 | 5775 | ||
| 33×4 | 1/2.25 | 2.25 | 0.8 | 50×0.20 | 2 | 30.4 | 1841.1 | 4.61 | 0.0085 | 3/5 | 9240 | ||
| 33×6 | 1/2.76 | 2.76 | 0.8 | 60×0.20 | 2 | 33.8 | 2536.3 | 3.08 | 0.007 | 3/5 | 13860 | ||
| 34 | 34×0.5 | 1/0.80 | 0.8 | 0.6 | 30×0.20 | 1.5 | 17.6 | 408.8 | 36 | 3/5 | 1190 | ||
| 34×0.75 | 1/0.97 | 0.97 | 0.6 | 30×0.20 | 1.5 | 18.8 | 506.7 | 24.5 | 0.012 | 3/5 | 1785 | ||
| 34×1.0 | 1/1.13 | 1.13 | 0.6 | 30×0.20 | 1.7 | 20.3 | 630.6 | 18.1 | 0.011 | 3/5 | 2380 | ||
| 34×1.5 | 1/1.38 | 1.38 | 0.7 | 40×0.20 | 1.7 | 23.5 | 875.4 | 12.1 | 0.011 | 3/5 | 3570 | ||
| 34×2.5 | 1/1.78 | 1.78 | 0.8 | 45×0.20 | 1.7 | 27.7 | 1313.2 | 7.41 | 0.01 | 3/5 | 5950 | ||
| 34×4 | 1/2.25 | 2.25 | 0.8 | 55×0.20 | 2 | 31.6 | 1902.9 | 4.61 | 0.0085 | 3/5 | 9520 | ||
| 34×6 | 1/2.76 | 2.76 | 0.8 | 60×0.20 | 2.2 | 35.5 | 2653.9 | 3.08 | 0.007 | 3/5 | 14280 | ||
| 35 | 35×0.5 | 1/0.80 | 0.8 | 0.6 | 30×0.20 | 1.5 | 17.6 | 417.2 | 36 | 3/5 | 1225 | ||
| 35×0.75 | 1/0.97 | 0.97 | 0.6 | 30×0.20 | 1.5 | 18.8 | 517.7 | 24.5 | 0.012 | 3/5 | 1838 | ||
| 35×1.0 | 1/1.13 | 1.13 | 0.6 | 30×0.20 | 1.7 | 20.3 | 644.4 | 18.1 | 0.011 | 3/5 | 2450 | ||
| 35×1.5 | 1/1.38 | 1.38 | 0.7 | 40×0.20 | 1.7 | 23.5 | 895.6 | 12.1 | 0.011 | 3/5 | 3675 | ||
| 35×2.5 | 1/1.78 | 1.78 | 0.8 | 45×0.20 | 1.7 | 27.7 | 1345.2 | 7.41 | 0.01 | 3/5 | 6125 | ||
| 35×4 | 1/2.25 | 2.25 | 0.8 | 55×0.20 | 2 | 31.6 | 1950.1 | 4.61 | 0.0085 | 3/5 | 9800 | ||
| 35×6 | 1/2.76 | 2.76 | 0.8 | 60×0.20 | 2.2 | 35.5 | 2721.1 | 3.08 | 0.007 | 3/5 | 14700 | ||
| 36 | 36×0.5 | 1/0.80 | 0.8 | 0.6 | 30×0.20 | 1.5 | 17.6 | 425.6 | 36 | 3/5 | 1260 | ||
| 36×0.75 | 1/0.97 | 0.97 | 0.6 | 30×0.20 | 1.5 | 18.8 | 528.8 | 24.5 | 0.012 | 3/5 | 1890 | ||
| 36×1.0 | 1/1.13 | 1.13 | 0.6 | 30×0.20 | 1.7 | 20.3 | 658.3 | 18.1 | 0.011 | 3/5 | 2520 | ||
| 36×1.5 | 1/1.38 | 1.38 | 0.7 | 40×0.20 | 1.7 | 23.5 | 915.9 | 12.1 | 0.011 | 3/5 | 3780 | ||
| 36×2.5 | 1/1.78 | 1.78 | 0.8 | 45×0.20 | 1.7 | 27.7 | 1377.3 | 7.41 | 0.01 | 3/5 | 6300 | ||
| 36×4 | 1/2.25 | 2.25 | 0.8 | 55×0.20 | 2 | 31.6 | 1997.3 | 4.61 | 0.0085 | 3/5 | 10080 | ||
| 36×6 | 1/2.76 | 2.76 | 0.8 | 60×0.20 | 2.2 | 35.5 | 2788.3 | 3.08 | 0.007 | 3/5 | 15120 | ||
| 37 | 37×0.75 | 1/0.97 | 0.97 | 0.6 | 30×0.20 | 1.5 | 18.8 | 537.6 | 24.5 | 0.012 | 3/5 | 1943 | |
| 37×1.0 | 1/1.13 | 1.13 | 0.6 | 30×0.20 | 1.7 | 20.3 | 669.7 | 18.1 | 0.011 | 3/5 | 2590 | ||
| 37×1.5 | 1/1.38 | 1.38 | 0.7 | 40×0.20 | 1.7 | 23.5 | 932.6 | 12.1 | 0.011 | 3/5 | 3885 | ||
| 37×2.5 | 1/1.78 | 1.78 | 0.8 | 45×0.20 | 1.7 | 27.7 | 1404.1 | 7.41 | 0.01 | 3/5 | 6475 | ||
| 38 | 38×0.5 | 1/0.80 | 0.8 | 0.6 | 30×0.20 | 1.5 | 18.2 | 445.2 | 36 | 3/5 | 1330 | ||
| 38×0.75 | 1/0.97 | 0.97 | 0.6 | 30×0.20 | 1.7 | 19.8 | 572.1 | 24.5 | 0.012 | 3/5 | 1995 | ||
| 38×1.0 | 1/1.13 | 1.13 | 0.6 | 35×0.20 | 1.7 | 21 | 689.4 | 18.1 | 0.011 | 3/5 | 2660 | ||
| 38×1.5 | 1/1.38 | 1.38 | 0.7 | 40×0.20 | 1.7 | 24.3 | 959.9 | 12.1 | 0.011 | 3/5 | 3990 | ||
| 38×2.5 | 1/1.78 | 1.78 | 0.8 | 50×0.20 | 2 | 29.3 | 1485.6 | 7.41 | 0.01 | 3/5 | 6650 | ||
| 38×4 | 1/2.25 | 2.25 | 0.8 | 55×0.20 | 2 | 32.7 | 2096.4 | 4.61 | 0.0085 | 3/5 | 10640 | ||
| 38×6 | 1/2.76 | 2.76 | 0.8 | 60×0.20 | 2.2 | 36.8 | 2928.3 | 3.08 | 0.007 | 3/5 | 15960 | ||
| 39 | 39×0.5 | 1/0.80 | 0.8 | 0.6 | 30×0.20 | 1.5 | 18.2 | 453.6 | 36 | 3/5 | 1365 | ||
| 39×0.75 | 1/0.97 | 0.97 | 0.6 | 30×0.20 | 1.7 | 19.8 | 583.1 | 24.5 | 0.012 | 3/5 | 2048 | ||
| 39×1.0 | 1/1.13 | 1.13 | 0.6 | 35×0.20 | 1.7 | 21 | 703.3 | 18.1 | 0.011 | 3/5 | 2730 | ||
| 39×1.5 | 1/1.38 | 1.38 | 0.7 | 40×0.20 | 1.7 | 24.3 | 980.1 | 12.1 | 0.011 | 3/5 | 4095 | ||
| 39×2.5 | 1/1.78 | 1.78 | 0.8 | 50×0.20 | 2 | 29.3 | 1517.6 | 7.41 | 0.01 | 3/5 | 6825 | ||
| 39×4 | 1/2.25 | 2.25 | 0.8 | 55×0.20 | 2 | 32.7 | 2143.6 | 4.61 | 0.0085 | 3/5 | 10920 | ||
| 39×6 | 1/2.76 | 2.76 | 0.8 | 60×0.20 | 2.2 | 36.8 | 2995.5 | 3.08 | 0.007 | 3/5 | 16380 | ||
| 40 | 40×0.5 | 1/0.80 | 0.8 | 0.6 | 30×0.20 | 1.5 | 19.6 | 472.6 | 36 | 3/5 | 1400 | ||
| 40×0.75 | 1/0.97 | 0.97 | 0.6 | 35×0.20 | 1.7 | 21.4 | 607 | 24.5 | 0.012 | 3/5 | 2100 | ||
| 40×1.0 | 1/1.13 | 1.13 | 0.6 | 35×0.20 | 1.7 | 22.6 | 731 | 18.1 | 0.011 | 3/5 | 2800 | ||
| 40×1.5 | 1/1.38 | 1.38 | 0.7 | 45×0.20 | 1.7 | 26.2 | 1016.9 | 12.1 | 0.011 | 3/5 | 4200 | ||
| 40×2.5 | 1/1.78 | 1.78 | 0.8 | 55×0.20 | 2 | 31.6 | 1573.1 | 7.41 | 0.01 | 3/5 | 7000 | ||
| 40×4 | 1/2.25 | 2.25 | 0.8 | 60×0.20 | 2 | 35.4 | 2217.4 | 4.61 | 0.0085 | 3/5 | 11200 | ||
| 40×6 | 1/2.76 | 2.76 | 0.8 | 60×0.20 | 2.2 | 39.9 | 3095.7 | 3.08 | 0.007 | 3/5 | 16800 | ||
| 41 | 41×0.5 | 1/0.80 | 0.8 | 0.6 | 30×0.20 | 1.5 | 19.6 | 481 | 36 | 3/5 | 1435 | ||
| 41×0.75 | 1/0.97 | 0.97 | 0.6 | 35×0.20 | 1.7 | 21.4 | 618 | 24.5 | 0.012 | 3/5 | 2153 | ||
| 41×1.0 | 1/1.13 | 1.13 | 0.6 | 35×0.20 | 1.7 | 22.6 | 744.8 | 18.1 | 0.011 | 3/5 | 2870 | ||
| 41×1.5 | 1/1.38 | 1.38 | 0.7 | 45×0.20 | 1.7 | 26.2 | 1037.1 | 12.1 | 0.011 | 3/5 | 4305 | ||
| 41×2.5 | 1/1.78 | 1.78 | 0.8 | 55×0.20 | 2 | 31.6 | 1605.1 | 7.41 | 0.01 | 3/5 | 7175 | ||
| 41×4 | 1/2.25 | 2.25 | 0.8 | 60×0.20 | 2 | 35.4 | 2264.6 | 4.61 | 0.0085 | 3/5 | 11480 | ||
| 41×6 | 1/2.76 | 2.76 | 0.8 | 60×0.20 | 2.2 | 39.9 | 3163 | 3.08 | 0.007 | 3/5 | 17220 | ||
| 42 | 42×0.5 | 1/0.80 | 0.8 | 0.6 | 30×0.20 | 1.5 | 19.6 | 489.4 | 36 | 3/5 | 1470 | ||
| 42×0.75 | 1/0.97 | 0.97 | 0.6 | 35×0.20 | 1.7 | 21.4 | 629.1 | 24.5 | 0.012 | 3/5 | 2205 | ||
| 42×1.0 | 1/1.13 | 1.13 | 0.6 | 35×0.20 | 1.7 | 22.6 | 758.7 | 18.1 | 0.011 | 3/5 | 2940 | ||
| 42×1.5 | 1/1.38 | 1.38 | 0.7 | 45×0.20 | 1.7 | 26.2 | 1057.4 | 12.1 | 0.011 | 3/5 | 4410 | ||
| 42×2.5 | 1/1.78 | 1.78 | 0.8 | 55×0.20 | 2 | 31.6 | 1637.1 | 7.41 | 0.01 | 3/5 | 7350 | ||
| 42×4 | 1/2.25 | 2.25 | 0.8 | 60×0.20 | 2 | 35.4 | 2311.8 | 4.61 | 0.0085 | 3/5 | 11760 | ||
| 42×6 | 1/2.76 | 2.76 | 0.8 | 60×0.20 | 2.2 | 39.9 | 3230.2 | 3.08 | 0.007 | 3/5 | 17640 | ||
| 43 | 43×0.5 | 1/0.80 | 0.8 | 0.6 | 30×0.20 | 1.5 | 19.6 | 497.8 | 36 | 3/5 | 1505 | ||
| 43×0.75 | 1/0.97 | 0.97 | 0.6 | 35×0.20 | 1.7 | 21.4 | 640.1 | 24.5 | 0.012 | 3/5 | 2258 | ||
| 43×1.0 | 1/1.13 | 1.13 | 0.6 | 35×0.20 | 1.7 | 22.6 | 772.6 | 18.1 | 0.011 | 3/5 | 3010 | ||
| 43×1.5 | 1/1.38 | 1.38 | 0.7 | 45×0.20 | 1.7 | 26.2 | 1077.6 | 12.1 | 0.011 | 3/5 | 4515 | ||
| 43×2.5 | 1/1.78 | 1.78 | 0.8 | 55×0.20 | 2 | 31.6 | 1669.2 | 7.41 | 0.01 | 3/5 | 7525 | ||
| 43×4 | 1/2.25 | 2.25 | 0.8 | 60×0.20 | 2 | 35.4 | 2359 | 4.61 | 0.0085 | 3/5 | 12040 | ||
| 43×6 | 1/2.76 | 2.76 | 0.8 | 60×0.20 | 2.2 | 39.9 | 3297.4 | 3.08 | 0.007 | 3/5 | 18060 | ||
| 44 | 44×0.75 | 1/0.97 | 0.97 | 0.6 | 35×0.20 | 1.7 | 21.4 | 651.1 | 24.5 | 0.012 | 3/5 | 2310 | |
| 44×1.0 | 1/1.13 | 1.13 | 0.6 | 35×0.20 | 1.7 | 22.6 | 786.4 | 18.1 | 0.011 | 3/5 | 3080 | ||
| 44×1.5 | 1/1.38 | 1.38 | 0.7 | 45×0.20 | 1.7 | 26.2 | 1097.9 | 12.1 | 0.011 | 3/5 | 4620 | ||
| 44×2.5 | 1/1.78 | 1.78 | 0.8 | 55×0.20 | 2 | 31.6 | 1701.2 | 7.41 | 0.01 | 3/5 | 7700 | ||
| 45 | 45×0.5 | 1/0.80 | 0.8 | 0.6 | 30×0.20 | 1.7 | 20.3 | 536 | 36 | 3/5 | 1575 | ||
| 45×0.75 | 1/0.97 | 0.97 | 0.6 | 35×0.20 | 1.7 | 21.7 | 665.1 | 24.5 | 0.012 | 3/5 | 2363 | ||
| 45×1.0 | 1/1.13 | 1.13 | 0.6 | 40×0.20 | 1.7 | 23 | 803.4 | 18.1 | 0.011 | 3/5 | 3150 | ||
| 45×1.5 | 1/1.38 | 1.38 | 0.7 | 45×0.20 | 1.7 | 26.7 | 1121.9 | 12.1 | 0.011 | 3/5 | 4725 | ||
| 45×2.5 | 1/1.78 | 1.78 | 0.8 | 55×0.20 | 2 | 32.2 | 1738.6 | 7.41 | 0.01 | 3/5 | 7875 | ||
| 45×4 | 1/2.25 | 2.25 | 0.8 | 60×0.20 | 2.2 | 36.4 | 2493.6 | 4.61 | 0.0085 | 3/5 | 12600 | ||
| 45×6 | 1/2.76 | 2.76 | 0.8 | 60×0.20 | 2.2 | 40.6 | 3439.4 | 3.08 | 0.007 | 3/5 | 18900 | ||
| 46 | 46×0.5 | 1/0.80 | 0.8 | 0.6 | 30×0.20 | 1.7 | 20.3 | 544.5 | 36 | 3/5 | 1610 | ||
| 46×0.75 | 1/0.97 | 0.97 | 0.6 | 35×0.20 | 1.7 | 21.7 | 676.1 | 24.5 | 0.012 | 3/5 | 2415 | ||
| 46×1.0 | 1/1.13 | 1.13 | 0.6 | 40×0.20 | 1.7 | 23 | 817.3 | 18.1 | 0.011 | 3/5 | 3220 | ||
| 46×1.5 | 1/1.38 | 1.38 | 0.7 | 45×0.20 | 1.7 | 26.7 | 1142.2 | 12.1 | 0.011 | 3/5 | 4830 | ||
| 46×2.5 | 1/1.78 | 1.78 | 0.8 | 55×0.20 | 2 | 32.2 | 1770.6 | 7.41 | 0.01 | 3/5 | 8050 | ||
| 46×4 | 1/2.25 | 2.25 | 0.8 | 60×0.20 | 2.2 | 36.4 | 2540.8 | 4.61 | 0.0085 | 3/5 | 12880 | ||
| 46×6 | 1/2.76 | 2.76 | 0.8 | 60×0.20 | 2.2 | 40.6 | 3506.6 | 3.08 | 0.007 | 3/5 | 19320 | ||
| 47 | 47×0.5 | 1/0.80 | 0.8 | 0.6 | 30×0.20 | 1.7 | 20.3 | 552.9 | 36 | 3/5 | 1645 | ||
| 47×0.75 | 1/0.97 | 0.97 | 0.6 | 35×0.20 | 1.7 | 21.7 | 687.1 | 24.5 | 0.012 | 3/5 | 2468 | ||
| 47×1.0 | 1/1.13 | 1.13 | 0.6 | 40×0.20 | 1.7 | 23 | 831.2 | 18.1 | 0.011 | 3/5 | 3290 | ||
| 47×1.5 | 1/1.38 | 1.38 | 0.7 | 45×0.20 | 1.7 | 26.7 | 1162.4 | 12.1 | 0.011 | 3/5 | 4935 | ||
| 47×2.5 | 1/1.78 | 1.78 | 0.8 | 55×0.20 | 2 | 32.2 | 1802.6 | 7.41 | 0.01 | 3/5 | 8225 | ||
| 47×4 | 1/2.25 | 2.25 | 0.8 | 60×0.20 | 2.2 | 36.4 | 2588 | 4.61 | 0.0085 | 3/5 | 13160 | ||
| 47×6 | 1/2.76 | 2.76 | 0.8 | 60×0.20 | 2.2 | 40.6 | 3573.8 | 3.08 | 0.007 | 3/5 | 19740 | ||
| 48 | 48×0.75 | 1/0.97 | 0.97 | 0.6 | 35×0.20 | 1.7 | 21.7 | 698.1 | 24.5 | 0.012 | 3/5 | 2520 | |
| 48×1.0 | 1/1.13 | 1.13 | 0.6 | 40×0.20 | 1.7 | 23 | 845 | 18.1 | 0.011 | 3/5 | 3360 | ||
| 48×1.5 | 1/1.38 | 1.38 | 0.7 | 45×0.20 | 1.7 | 26.7 | 1182.7 | 12.1 | 0.011 | 3/5 | 5040 | ||
| 48×2.5 | 1/1.78 | 1.78 | 0.8 | 55×0.20 | 2 | 32.2 | 1834.6 | 7.41 | 0.01 | 3/5 | 8400 | ||
| 49 | 49×0.5 | 1/0.80 | 0.8 | 0.6 | 35×0.20 | 1.7 | 20.8 | 574.5 | 36 | 3/5 | 1715 | ||
| 49×0.75 | 1/0.97 | 0.97 | 0.6 | 35×0.20 | 1.7 | 22.3 | 714.4 | 24.5 | 0.012 | 3/5 | 2573 | ||
| 49×1.0 | 1/1.13 | 1.13 | 0.6 | 40×0.20 | 1.7 | 23.6 | 864.4 | 18.1 | 0.011 | 3/5 | 3430 | ||
| 49×1.5 | 1/1.38 | 1.38 | 0.7 | 45×0.20 | 1.7 | 27.4 | 1209.6 | 12.1 | 0.011 | 3/5 | 5145 | ||
| 49×2.5 | 1/1.78 | 1.78 | 0.8 | 55×0.20 | 2 | 33 | 1876.3 | 7.41 | 0.01 | 3/5 | 8575 | ||
| 49×4 | 1/2.25 | 2.25 | 0.8 | 60×0.20 | 2.2 | 37.4 | 2694.4 | 4.61 | 0.0085 | 3/5 | 13720 | ||
| 49×6 | 1/2.76 | 2.76 | 0.8 | 60×0.20 | 2.2 | 41.7 | 3722.1 | 3.08 | 0.007 | 3/5 | 20580 | ||
| 50 | 50×0.5 | 1/0.80 | 0.8 | 0.6 | 35×0.20 | 1.7 | 20.8 | 582.9 | 36 | 3/5 | 1750 | ||
| 50×0.75 | 1/0.97 | 0.97 | 0.6 | 35×0.20 | 1.7 | 22.3 | 725.4 | 24.5 | 0.012 | 3/5 | 2625 | ||
| 50×1.0 | 1/1.13 | 1.13 | 0.6 | 40×0.20 | 1.7 | 23.6 | 878.2 | 18.1 | 0.011 | 3/5 | 3500 | ||
| 50×1.5 | 1/1.38 | 1.38 | 0.7 | 45×0.20 | 1.7 | 27.4 | 1229.8 | 12.1 | 0.011 | 3/5 | 5250 | ||
| 50×2.5 | 1/1.78 | 1.78 | 0.8 | 55×0.20 | 2 | 33 | 1908.3 | 7.41 | 0.01 | 3/5 | 8750 | ||
| 50×4 | 1/2.25 | 2.25 | 0.8 | 60×0.20 | 2.2 | 37.4 | 2741.6 | 4.61 | 0.0085 | 3/5 | 14000 | ||
| 50×6 | 1/2.76 | 2.76 | 0.8 | 60×0.20 | 2.2 | 41.7 | 3789.3 | 3.08 | 0.007 | 3/5 | 21000 | ||
| 51 | 51×0.5 | 1/0.80 | 0.8 | 0.6 | 35×0.20 | 1.7 | 20.8 | 591.3 | 36 | 3/5 | 1785 | ||
| 51×0.75 | 1/0.97 | 0.97 | 0.6 | 35×0.20 | 1.7 | 22.3 | 736.4 | 24.5 | 0.012 | 3/5 | 2678 | ||
| 51×1.0 | 1/1.13 | 1.13 | 0.6 | 40×0.20 | 1.7 | 23.6 | 892.1 | 18.1 | 0.011 | 3/5 | 3570 | ||
| 51×1.5 | 1/1.38 | 1.38 | 0.7 | 45×0.20 | 1.7 | 27.4 | 1250.1 | 12.1 | 0.011 | 3/5 | 5355 | ||
| 51×2.5 | 1/1.78 | 1.78 | 0.8 | 55×0.20 | 2 | 33 | 1940.3 | 7.41 | 0.01 | 3/5 | 8925 | ||
| 51×4 | 1/2.25 | 2.25 | 0.8 | 60×0.20 | 2.2 | 37.4 | 2788.8 | 4.61 | 0.0085 | 3/5 | 14280 | ||
| 51×6 | 1/2.76 | 2.76 | 0.8 | 60×0.20 | 2.2 | 41.7 | 3856.5 | 3.08 | 0.007 | 3/5 | 21420 | ||
| 52 | 52×0.75 | 1/0.97 | 0.97 | 0.6 | 35×0.20 | 1.7 | 22.3 | 747.5 | 24.5 | 0.012 | 3/5 | 2730 | |
| 52×1.0 | 1/1.13 | 1.13 | 0.6 | 40×0.20 | 1.7 | 23.6 | 906 | 18.1 | 0.011 | 3/5 | 3640 | ||
| 52×1.5 | 1/1.38 | 1.38 | 0.7 | 45×0.20 | 1.7 | 27.4 | 1270.3 | 12.1 | 0.011 | 3/5 | 5460 | ||
| 52×2.5 | 1/1.78 | 1.78 | 0.8 | 55×0.20 | 2 | 33 | 1972.3 | 7.41 | 0.01 | 3/5 | 9100 | ||
| 53 | 53×0.5 | 1/0.80 | 0.8 | 0.6 | 35×0.20 | 1.7 | 21.4 | 613.6 | 36 | 3/5 | 1855 | ||
| 53×0.75 | 1/0.97 | 0.97 | 0.6 | 35×0.20 | 1.7 | 22.9 | 764.5 | 24.5 | 0.012 | 3/5 | 2783 | ||
| 53×1.0 | 1/1.13 | 1.13 | 0.6 | 40×0.20 | 1.7 | 24.3 | 926.3 | 18.1 | 0.011 | 3/5 | 3710 | ||
| 53×1.5 | 1/1.38 | 1.38 | 0.7 | 50×0.20 | 1.7 | 28.2 | 1298.5 | 12.1 | 0.011 | 3/5 | 5565 | ||
| 53×2.5 | 1/1.78 | 1.78 | 0.8 | 60×0.20 | 2 | 34 | 2015.6 | 7.41 | 0.01 | 3/5 | 9275 | ||
| 53×4 | 1/2.25 | 2.25 | 0.8 | 60×0.20 | 2.2 | 38.5 | 2897.4 | 4.61 | 0.0085 | 3/5 | 14840 | ||
| 53×6 | 1/2.76 | 2.76 | 0.8 | 60×0.20 | 2.2 | 42.9 | 4007.2 | 3.08 | 0.007 | 3/5 | 22260 | ||
| 54 | 54×0.5 | 1/0.80 | 0.8 | 0.6 | 35×0.20 | 1.7 | 21.4 | 622 | 36 | 3/5 | 1890 | ||
| 54×0.75 | 1/0.97 | 0.97 | 0.6 | 35×0.20 | 1.7 | 22.9 | 775.5 | 24.5 | 0.012 | 3/5 | 2835 | ||
| 54×1.0 | 1/1.13 | 1.13 | 0.6 | 40×0.20 | 1.7 | 24.3 | 940.2 | 18.1 | 0.011 | 3/5 | 3780 | ||
| 54×1.5 | 1/1.38 | 1.38 | 0.7 | 50×0.20 | 1.7 | 28.2 | 1318.7 | 12.1 | 0.011 | 3/5 | 5670 | ||
| 54×2.5 | 1/1.78 | 1.78 | 0.8 | 60×0.20 | 2 | 34 | 2047.6 | 7.41 | 0.01 | 3/5 | 9450 | ||
| 54×4 | 1/2.25 | 2.25 | 0.8 | 60×0.20 | 2.2 | 38.5 | 2944.6 | 4.61 | 0.0085 | 3/5 | 15120 | ||
| 54×6 | 1/2.76 | 2.76 | 0.8 | 60×0.20 | 2.2 | 42.9 | 4074.4 | 3.08 | 0.007 | 3/5 | 22680 | ||
| 55 | 55×0.5 | 1/0.80 | 0.8 | 0.6 | 35×0.20 | 1.7 | 21.4 | 630.4 | 36 | 3/5 | 1925 | ||
| 55×0.75 | 1/0.97 | 0.97 | 0.6 | 35×0.20 | 1.7 | 22.9 | 786.5 | 24.5 | 0.012 | 3/5 | 2888 | ||
| 55×1.0 | 1/1.13 | 1.13 | 0.6 | 40×0.20 | 1.7 | 24.3 | 954 | 18.1 | 0.011 | 3/5 | 3850 | ||
| 55×1.5 | 1/1.38 | 1.38 | 0.7 | 50×0.20 | 1.7 | 28.2 | 1339 | 12.1 | 0.011 | 3/5 | 5775 | ||
| 55×2.5 | 1/1.78 | 1.78 | 0.8 | 60×0.20 | 2 | 34 | 2079.7 | 7.41 | 0.01 | 3/5 | 9625 | ||
| 55×4 | 1/2.25 | 2.25 | 0.8 | 60×0.20 | 2.2 | 38.5 | 2991.8 | 4.61 | 0.0085 | 3/5 | 15400 | ||
| 55×6 | 1/2.76 | 2.76 | 0.8 | 60×0.20 | 2.2 | 42.9 | 4141.6 | 3.08 | 0.007 | 3/5 | 23100 | ||
| 56 | 56×0.5 | 1/0.80 | 0.8 | 0.6 | 35×0.20 | 1.7 | 21.4 | 638.9 | 36 | 3/5 | 1960 | ||
| 56×0.75 | 1/0.97 | 0.97 | 0.6 | 35×0.20 | 1.7 | 22.9 | 797.5 | 24.5 | 0.012 | 3/5 | 2940 | ||
| 56×1.0 | 1/1.13 | 1.13 | 0.6 | 40×0.20 | 1.7 | 24.3 | 967.9 | 18.1 | 0.011 | 3/5 | 3920 | ||
| 56×1.5 | 1/1.38 | 1.38 | 0.7 | 50×0.20 | 1.7 | 28.2 | 1359.2 | 12.1 | 0.011 | 3/5 | 5880 | ||
| 56×2.5 | 1/1.78 | 1.78 | 0.8 | 60×0.20 | 2 | 34 | 2111.7 | 7.41 | 0.01 | 3/5 | 9800 | ||
| 56×4 | 1/2.25 | 2.25 | 0.8 | 60×0.20 | 2.2 | 38.5 | 3039 | 4.61 | 0.0085 | 3/5 | 15680 | ||
| 56×6 | 1/2.76 | 2.76 | 0.8 | 60×0.20 | 2.2 | 42.9 | 4208.8 | 3.08 | 0.007 | 3/5 | 23520 | ||
| 57 | 57×0.5 | 1/0.80 | 0.8 | 0.6 | 35×0.20 | 1.7 | 22 | 651.4 | 36 | 3/5 | 1995 | ||
| 57×0.75 | 1/0.97 | 0.97 | 0.6 | 40×0.20 | 1.7 | 23.5 | 813 | 24.5 | 0.012 | 3/5 | 2993 | ||
| 57×1.0 | 1/1.13 | 1.13 | 0.6 | 40×0.20 | 1.7 | 25 | 986.4 | 18.1 | 0.011 | 3/5 | 3990 | ||
| 57×1.5 | 1/1.38 | 1.38 | 0.7 | 50×0.20 | 2 | 29.6 | 1426.1 | 12.1 | 0.011 | 3/5 | 5985 | ||
| 57×2.5 | 1/1.78 | 1.78 | 0.8 | 60×0.20 | 2.2 | 35.4 | 2184.1 | 7.41 | 0.01 | 3/5 | 9975 | ||
| 57×4 | 1/2.25 | 2.25 | 0.8 | 60×0.20 | 2.2 | 39.7 | 3095.1 | 4.61 | 0.0085 | 3/5 | 15960 | ||
| 57×6 | 1/2.76 | 2.76 | 0.8 | 60×0.20 | 2.2 | 44.2 | 4285.6 | 3.08 | 0.007 | 3/5 | 23940 | ||
| 58 | 58×0.5 | 1/0.80 | 0.8 | 0.6 | 35×0.20 | 1.7 | 22 | 659.8 | 36 | 3/5 | 2030 | ||
| 58×0.75 | 1/0.97 | 0.97 | 0.6 | 40×0.20 | 1.7 | 23.5 | 824 | 24.5 | 0.012 | 3/5 | 3045 | ||
| 58×1.0 | 1/1.13 | 1.13 | 0.6 | 40×0.20 | 1.7 | 25 | 1000.2 | 18.1 | 0.011 | 3/5 | 4060 | ||
| 58×1.5 | 1/1.38 | 1.38 | 0.7 | 50×0.20 | 2 | 29.6 | 1446.3 | 12.1 | 0.011 | 3/5 | 6090 | ||
| 58×2.5 | 1/1.78 | 1.78 | 0.8 | 60×0.20 | 2.2 | 35.4 | 2216.2 | 7.41 | 0.01 | 3/5 | 10150 | ||
| 58×4 | 1/2.25 | 2.25 | 0.8 | 60×0.20 | 2.2 | 39.7 | 3142.3 | 4.61 | 0.0085 | 3/5 | 16240 | ||
| 58×6 | 1/2.76 | 2.76 | 0.8 | 60×0.20 | 2.2 | 44.2 | 4352.9 | 3.08 | 0.007 | 3/5 | 24360 | ||
| 59 | 59×0.5 | 1/0.80 | 0.8 | 0.6 | 35×0.20 | 1.7 | 22 | 668.3 | 36 | 3/5 | 2065 | ||
| 59×0.75 | 1/0.97 | 0.97 | 0.6 | 40×0.20 | 1.7 | 23.5 | 835 | 24.5 | 0.012 | 3/5 | 3098 | ||
| 59×1.0 | 1/1.13 | 1.13 | 0.6 | 40×0.20 | 1.7 | 25 | 1014.1 | 18.1 | 0.011 | 3/5 | 4130 | ||
| 59×1.5 | 1/1.38 | 1.38 | 0.7 | 50×0.20 | 2 | 29.6 | 1466.6 | 12.1 | 0.011 | 3/5 | 6195 | ||
| 59×2.5 | 1/1.78 | 1.78 | 0.8 | 60×0.20 | 2.2 | 35.4 | 2248.2 | 7.41 | 0.01 | 3/5 | 10325 | ||
| 59×4 | 1/2.25 | 2.25 | 0.8 | 60×0.20 | 2.2 | 39.7 | 3189.5 | 4.61 | 0.0085 | 3/5 | 16520 | ||
| 59×6 | 1/2.76 | 2.76 | 0.8 | 60×0.20 | 2.2 | 44.2 | 4420.1 | 3.08 | 0.007 | 3/5 | 24780 | ||
| 60 | 60×0.5 | 1/0.80 | 0.8 | 0.6 | 35×0.20 | 1.7 | 22 | 676.7 | 36 | 3/5 | 2100 | ||
| 60×0.75 | 1/0.97 | 0.97 | 0.6 | 40×0.20 | 1.7 | 23.5 | 846.1 | 24.5 | 0.012 | 3/5 | 3150 | ||
| 60×1.0 | 1/1.13 | 1.13 | 0.6 | 40×0.20 | 1.7 | 25 | 1027.9 | 18.1 | 0.011 | 3/5 | 4200 | ||
| 60×1.5 | 1/1.38 | 1.38 | 0.7 | 50×0.20 | 2 | 29.6 | 1486.8 | 12.1 | 0.011 | 3/5 | 6300 | ||
| 60×2.5 | 1/1.78 | 1.78 | 0.8 | 60×0.20 | 2.2 | 35.4 | 2280.2 | 7.41 | 0.01 | 3/5 | 10500 | ||
| 60×4 | 1/2.25 | 2.25 | 0.8 | 60×0.20 | 2.2 | 39.7 | 3236.6 | 4.61 | 0.0085 | 3/5 | 16800 | ||
| 60×6 | 1/2.76 | 2.76 | 0.8 | 60×0.20 | 2.2 | 44.2 | 4487.3 | 3.08 | 0.007 | 3/5 | 25200 | ||
| 61 | 61×0.75 | 1/0.97 | 0.97 | 0.6 | 40×0.20 | 1.7 | 23.5 | 857.1 | 24.5 | 0.012 | 3/5 | 3203 | |
| 61×1.0 | 1/1.13 | 1.13 | 0.6 | 40×0.20 | 1.7 | 25 | 1041.8 | 18.1 | 0.011 | 3/5 | 4270 | ||
| 61×1.5 | 1/1.38 | 1.38 | 0.7 | 50×0.20 | 2 | 29.6 | 1507 | 12.1 | 0.011 | 3/5 | 6405 | ||
| 61×2.5 | 1/1.78 | 1.78 | 0.8 | 60×0.20 | 2.2 | 35.4 | 2312.2 | 7.41 | 0.01 | 3/5 | 10675 |
We are based in Henan, China, start from 2012,sell to Domestic Market(70.00%), Mid East(11.00%), South America(10.00%), Africa(3.00%), North America(2.00%), Southeast Asia(2.00%), Eastern Asia(00.00%), South Asia(00.00%). There are total about 101-200 people in our office.
Always a pre-production sample before mass production; Always final Inspection before shipment.
Wire, Cable
We have twenty years of experience in design and development
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency: USD,EUR;
Accepted Payment Type: T/T,L/C,Money Gram,Western Union;
Language Spoken: English,Chinese,French
Most quotes are returned within 24 hours
Cable inspection is divided into factory inspection and type inspection
Factory inspection includes 100% inspection and sampling inspection
100% inspection：
（1）Electrical performance test；Insulated wire core voltage test
（2）Delivery length
Sampling inspection should be carried out on cables that have completed 100% of the inspection items and passed the inspection.
Type inspection：
（1）Structural dimension inspection：Insulation thickness, sheath thickness, cabling, shielding, lining, armor, outer diameter, the difference between the maximum outer diameter and the minimum outer diameter of the finished cable on the same section
（2）Insulation mechanical and physical properties
（3）Mechanical and physical properties of sheath
（4）Electrical performance test：Conductor resistance、Finished product voltage test、Insulation resistance
（5）Burning behavior of cables
（6）Exterior：Printing logo, appearance.
Type test sample cables should be randomly selected from the cables that have passed the factory inspection.
Items for type inspection：
（1）Structural dimension inspection：Insulation thickness, sheath thickness, cabling, shielding, lining, armor, outer diameter, the difference between the maximum outer diameter and the minimum outer diameter of the finished cable on the same section
（2）Insulation mechanical and physical properties
（3）Mechanical and physical properties of sheath
（4）Electrical performance test：Conductor resistance、Finished product voltage test、Insulation resistance
（5）Burning behavior of cables
（6）Exterior：Printing logo, appearance.
（7）Delivery length
Product performance requirements and test methods comply with the provisions of standard GB/T 9330-2008
1、The purpose of the performance acceptance test is to verify whether all the performance of the contract products meet the requirements
2、The location of the performance acceptance test is the purchaser’s site
3、The performance acceptance test shall be carried out within 6 months after the 168-hour full load trial operation of the product, and the specific test time shall be determined by both parties through negotiation.
4、Installation of measuring points, primary components and local instruments required for performance acceptance test shall be provided by the supplier and cooperated by the demander. The supplier shall also provide the technical cooperation and personnel cooperation required for the test.
5、Content of performance acceptance test
In accordance with supplier quality assurance and test requirements.
6、Criteria for performance acceptance test
In accordance with supplier's quality assurance and test requirements.
7、The performance acceptance test shall be conducted by the demander and participated by the supplier. The test program shall be provided by the demander and determined after discussion with the supplier. The specific test shall be completed by the testing department approved by both parties.
8、 Confirmation of performance acceptance test results
The performance acceptance test report shall be prepared by the testing unit, and the conclusions of the report shall be accepted by both parties. If there is any disagreement between the two parties on the results of the test, the two parties shall settle it through negotiation. If no agreement can be reached, it shall be submitted to the superior departments of both parties for negotiation.
9、When a performance acceptance test is conducted, if a party fails to send personnel to participate in the test after receiving the test notice from the other party, it shall be deemed to have agreed to the acceptance test results.
Refer to the "Interim Provisions on Quality Supervision of Large Electric Power Equipment" and "Working Regulations of the General Representative Group in Large Electric Power Equipment Manufacturing Plants" issued by the former Ministry of Electric Power Industry and the Ministry of Machinery Industry.
Refer to DL/T 586-2008 "Technical Guidelines for Equipment Manufacturing Supervision"
GB/T 50319-2013 "Code for Supervision of Construction Projects", GB/T 19000-2016/ISO 9000:2015 "Quality Management and Quality Assurance" standards.
Relevant business terms and technical agreements in the equipment purchase contract signed between the user and the manufacturer, including legally binding documents, letters, correspondence, etc.
Product equipment drawings confirmed by the user and the manufacturer and modification notice issued by the design unit.
National standards, industry standards, and enterprise standards involved in technical documents and design drawings (subject to the latest version). If the standards used in technical documents and design drawings are inconsistent with each other, national standards, industry standards, and enterprise standards will be used in the derivation order.
When the design drawings are inconsistent with the quoted standards, the requirements in the standards shall prevail in principle, except for those with special requirements for parts and components.
Document witness, on-site witness and shutdown pending inspection, namely R point, W point, H point
After each manufacturing supervision content is completed, the supplier and the manufacturing supervision representative will complete the signature procedures on the witness form. The supplier shall submit one copy to the demander's manufacturing supervision representative
Point R: The supplier only needs to provide inspection or test records or report items, that is, document witness
Point W: Inspection or test items attended by the buyer’s supervision representative, that is, on-site witness
Point H: The supplier stops work at this point to wait for inspection or testing by the demander's manufacturing supervision representative, that is, the supplier stops work pending inspection.
After receiving the witness notice, the demander shall promptly send representatives to the supplier's inspection or testing site to participate in on-site witnessing or stop work pending inspection. If the representative of the demand side cannot attend on time, point W can be automatically converted to point R. However, if point H does not receive written notification from the demand side and agrees to be converted to point R, the supplier will not move to the next process on its own and agree with the demand side to change the witness time. . If the buyer still cannot participate on time after the change, point H will be automatically converted to point R.
3.1The supplier has the obligation to cooperate with the demander's supervision and provide relevant information in a timely manner without incurring any costs.
3.2The supplier provides work and life convenience to the demand-side manufacturing supervision representatives
3.3The supplier shall notify the demander's manufacturing supervision representative of the equipment manufacturing supervision items and time before witnessing on-site or suspending work for inspection.
3.4The demander's manufacturing supervision representative has the right to check (borrow) technical data related to the contract manufacturing supervision equipment. If the demander considers that it is necessary to copy and archive it, the supplier should provide convenience.
3.5The supplier shall provide the inspection and test
records and reports to the supervision representative
of the demander after the witness.
