H05Z-K / H07Z-K LSZH Cable
H05Z-K / H07Z-K LSZH Cable
H05Z-K / H07Z-K LSZH Cable
Voltage: H05Z-K – 0.5mm² to 1mm²: 300/500V
H07Z-K – 1.5mm² to 240mm²: 450/750V
Structure: Conductor Class 5 flexible copper conductor
Insulation LSZH (Low Smoke Zero Halogen)
Jacket no
Feature LSZH Cable
  • Overview
  • Specifications
  • FAQ
  • Test&Acceptance
  • Send Message

APPLICATION

LSZH panel wiring for appliances with maximum operating temperatures of 90°C, and generally in areas (such as public and government buildings) where smoke and toxic fumes may cause a threat to life and equipment. The cables produce no corrosive gases when burnt which is particularly important where electronic equipment is installed.

CHARACTERISTICS

Voltage Rating Uo/U

H05Z-K - 0.5mm² to 1mm²: 300/500V

H07Z-K - 1.5mm² to 240mm²: 450/750V

Temperature Rating

-25°C to +90°C

Minimum Bending Radius

Up to 35mm2: 4 x overall diameter

50mm2 and above: 6 x overall diameter

STANDARDS

EN 50525-3-41, EN 60228,

Flame Retardant according to IEC/EN 60332-1-2,

IEC/EN 60332-3-24

Halogen Free according to IEC/EN 61034-1/2,

IEC/EN 60754-1/2

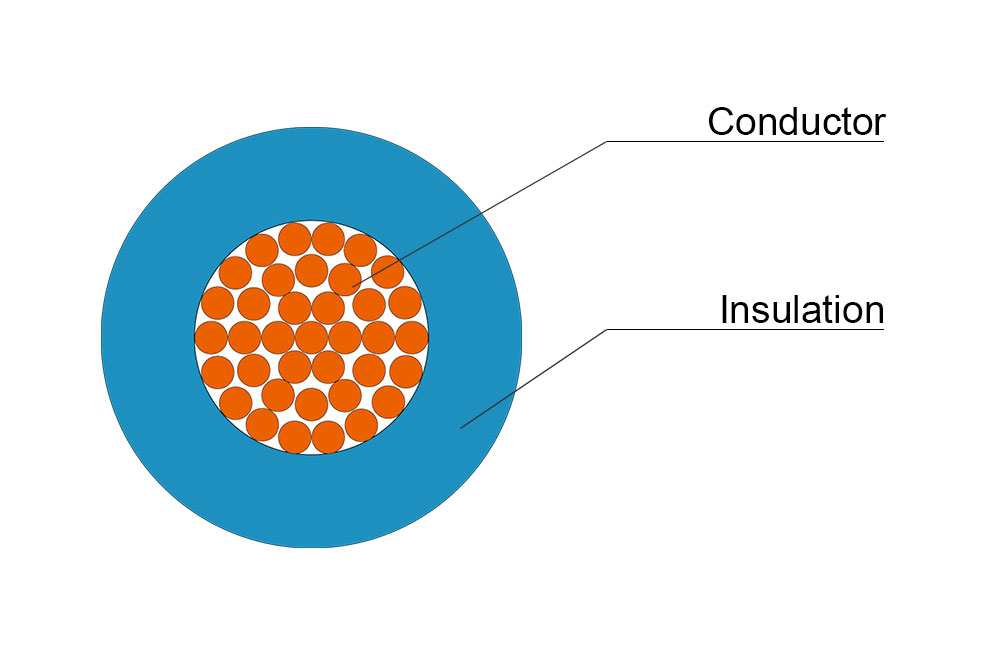

CONSTRUCTION

Conductor

Class 5 flexible copper conductor

Insulation

LSZH (Low Smoke Zero Halogen)

Insulation Colour

Red, Black, Blue, Orange, White, Yellow, Green/Yellow, Grey, Brown, Violet, Pink.

NOMINAL CROSS SECTIONAL AREA
mm2
NOMINAL THICKNESS OF INSULATION
mm
NOMINAL OVERALL DIAMETER
mm
MINIMUM RESISTANCE OF INSULATION AT 90°C
Mohms/km
NOMINAL WEIGHT
kg/km
Lower Limit Upper Limit
0.5 0.6 2.1 2.6 0.015 8.7
0.75 0.6 2.2 2.8 0.011 11.3
1 0.6 2.4 2.9 0.01 13.9
1.5 0.7 2.8 3.5 0.010 19.3
2.5 0.8 3.4 4.3 0.009 30.9
4 0.8 3.9 4.9 0.007 44.9
6 0.8 4.4 5.5 0.006 64.2
10 1 5.7 7.1 0.0056 108.2
16 1 6.7 8.4 0.0046 163.4
25 1.2 8.4 10.6 0.0044 248.1
35 1.2 9.7 12.1 0.0038 340.6
50 1.4 11.5 14.4 0.0037 484.2
70 1.4 13.2 16.6 0.0032 671
95 1.6 15.1 18.8 0.0032 895.8
120 1.6 16.7 20.9 0.0029 1111.1
150 1.8 18.6 23.3 0.0029 1389.2
185 2 20.6 25.8 0.0029 1724.1
240 2.2 23.5 29.4 0.0028 2225.4
  • Who we are?

    We are based in Henan, China, start from 2012,sell to Domestic Market(70.00%), Mid East(11.00%), South America(10.00%), Africa(3.00%), North America(2.00%), Southeast Asia(2.00%), Eastern Asia(00.00%), South Asia(00.00%). There are total about 101-200 people in our office.

  • How can we guarantee quality?

    Always a pre-production sample before mass production; Always final Inspection before shipment.

  • What can you buy from us?

    Wire, Cable

  • Why should you buy from us not from other suppliers?

    We have twenty years of experience in design and development

  • What services can we provide?

    Accepted Delivery Terms: FOB,CFR,CIF,EXW;
    Accepted Payment Currency: USD,EUR;
    Accepted Payment Type: T/T,L/C,Money Gram,Western Union;
    Language Spoken: English,Chinese,French

  • How long does it take to get a quote back?

    Most quotes are returned within 24 hours

testing

1、 test of sampling

Test items: Conductor DC resistance, AC withstand voltage test, insulation thickness measurement, outer diameter measurement

2、Type test

Test items: conductor DC resistance, AC withstand voltage test, insulation resistance, insulation thickness measurement, outer diameter measurement, aging test, weight loss test, high temperature pressure test, low temperature test, thermal shock test, non-flame delay test.

Product performance requirements and  test methods should comply with the provisions of standard GB/T 5023-2008

acceptance

1、The purpose of the performance acceptance test is to verify whether all the performance of the contract products meet the requirements

2、The location of the performance acceptance test is the purchaser’s site

3、The performance acceptance test shall be carried out within 6 months after the 168-hour full load trial operation of the product, and the specific test time shall be determined by both parties through negotiation.

4、Installation of measuring points, primary components and local instruments required for performance acceptance test shall be provided by the supplier and cooperated by the demander. The supplier shall also provide the technical cooperation and personnel cooperation required for the test.

5、Content of performance acceptance test

In accordance with supplier quality assurance and test requirements.

6、Criteria for performance acceptance test

In accordance with supplier's quality assurance and test requirements.

7、The performance acceptance test shall be conducted by the demander and participated by the supplier. The test program shall be provided by the demander and determined after discussion with the supplier. The specific test shall be completed by the testing department approved by both parties.

8、 Confirmation of performance acceptance test results

The performance acceptance test report shall be prepared by the testing unit, and the conclusions of the report shall be accepted by both parties. If there is any disagreement between the two parties on the results of the test, the two parties shall settle it through negotiation. If no agreement can be reached, it shall be submitted to the superior departments of both parties for negotiation.

9、When a performance acceptance test is conducted, if a party fails to send personnel to participate in the test after receiving the test notice from the other party, it shall be deemed to have agreed to the acceptance test results.

Supervision

1、 Basis for supervision

Refer to the "Interim Provisions on Quality Supervision of Large Electric Power Equipment" and "Working Regulations of the General Representative Group in Large Electric Power Equipment Manufacturing Plants" issued by the former Ministry of Electric Power Industry and the Ministry of Machinery Industry.

Refer to DL/T 586-2008 "Technical Guidelines for Equipment Manufacturing Supervision"

GB/T 50319-2013 "Code for Supervision of Construction Projects", GB/T 19000-2016/ISO 9000:2015 "Quality Management and Quality Assurance" standards.

Relevant business terms and technical agreements in the equipment purchase contract signed between the user and the manufacturer, including legally binding documents, letters, correspondence, etc.

Product equipment drawings confirmed by the user and the manufacturer and modification notice issued by the design unit.

National standards, industry standards, and enterprise standards involved in technical documents and design drawings (subject to the latest version). If the standards used in technical documents and design drawings are inconsistent with each other, national standards, industry standards, and enterprise standards will be used in the derivation order.

When the design drawings are inconsistent with the quoted standards, the requirements in the standards shall prevail in principle, except for those with special requirements for parts and components.

2、Method of construction

Document witness, on-site witness and shutdown pending inspection, namely R point, W point, H point

After each manufacturing supervision content is completed, the supplier and the manufacturing supervision representative will complete the signature procedures on the witness form. The supplier shall submit one copy to the demander's manufacturing supervision representative

Point R: The supplier only needs to provide inspection or test records or report items, that is, document witness

Point W: Inspection or test items attended by the buyer’s supervision representative, that is, on-site witness

Point H: The supplier stops work at this point to wait for inspection or testing by the demander's manufacturing supervision representative, that is, the supplier stops work pending inspection.

After receiving the witness notice, the demander shall promptly send representatives to the supplier's inspection or testing site to participate in on-site witnessing or stop work pending inspection. If the representative of the demand side cannot attend on time, point W can be automatically converted to point R. However, if point H does not receive written notification from the demand side and agrees to be converted to point R, the supplier will not move to the next process on its own and agree with the demand side to change the witness time. . If the buyer still cannot participate on time after the change, point H will be automatically converted to point R.

3、Requirements for suppliers to cooperate with manufacturing supervision

3.1The supplier has the obligation to cooperate with the demander's supervision and provide relevant information in a timely manner without incurring any costs.

3.2The supplier provides work and life convenience to the demand-side manufacturing supervision representatives

3.3The supplier shall notify the demander's manufacturing supervision representative of the equipment manufacturing supervision items and time before witnessing on-site or suspending work for inspection.

3.4The demander's manufacturing supervision representative has the right to check (borrow) technical data related to the contract manufacturing supervision equipment. If the demander considers that it is necessary to copy and archive it, the supplier should provide convenience.

     3.5The supplier shall provide the inspection and test

      records and reports to the supervision representative

      of the demander after  the witness.
