| H05Z-U / H07Z-U LSZH Cable | ||
| Voltage: | H05V-U: 300/500V H07V-U: 450/750V |
|

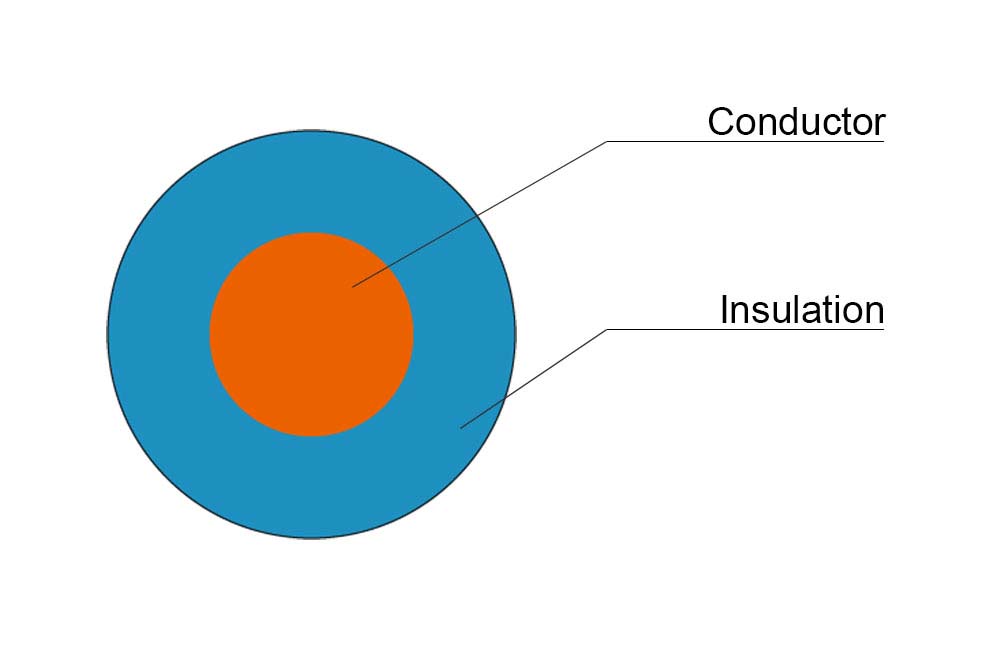

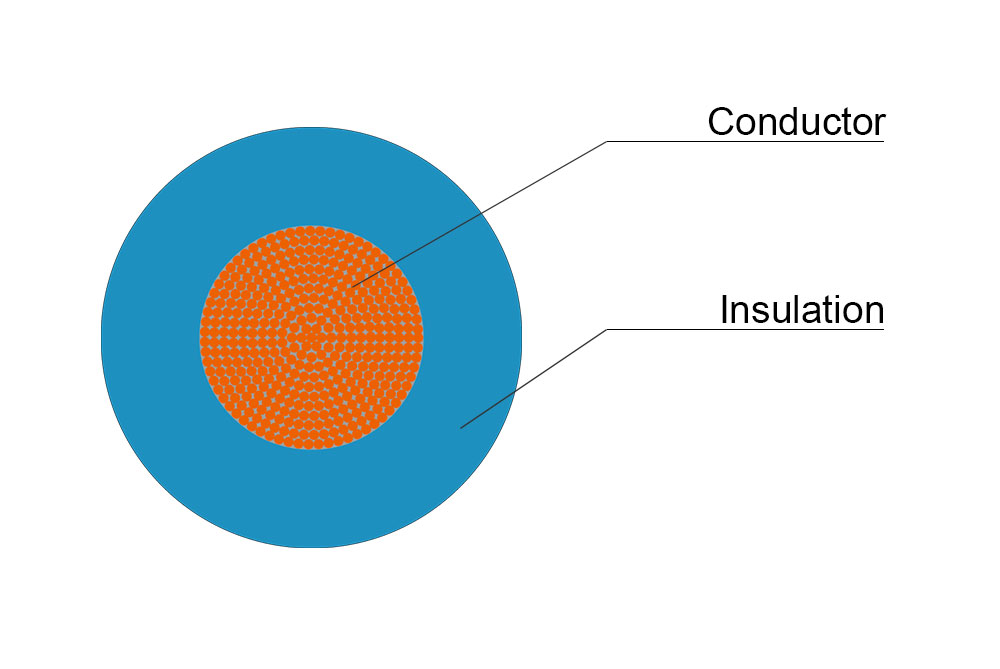

| Structure: | Conductor | Class 1 solid Copper |
| Insulation | LSZH (Low Smoke Zero Halogen) | |
| Jacket | no | |
| Feature | LSZH Cable | |
Single core rubber insulated H05Z and H07Z cable with solid copper conductor for internal installations in dry, clean environments requiring a rated voltage of 300/500V or 450/750V.
H05V-U: 300/500V
H07V-U: 450/750V
Maximum conductor operating temperature: 90°C
Maximum conductor short-circuit temperature: 250°C
Minimum installation temperature: 5°C
EN 50525-1, 50525-3-41, IEC/EN 60228, IEC 60245-2, DIN
VDE 0282-1/9/300, DIN VDE 0295, VDE 0298-4, EN 50395,
EN 50396, HD 22.1/9, HD 308, HD 383, HD 516
Flame Retardant to IEC/EN 60332-1-2
Low Smoke Zero Halogen to IEC/EN 60754-1/2 and IEC/EN
61034-1/2
Class 1 solid Copper
LSZH (Low Smoke Zero Halogen)

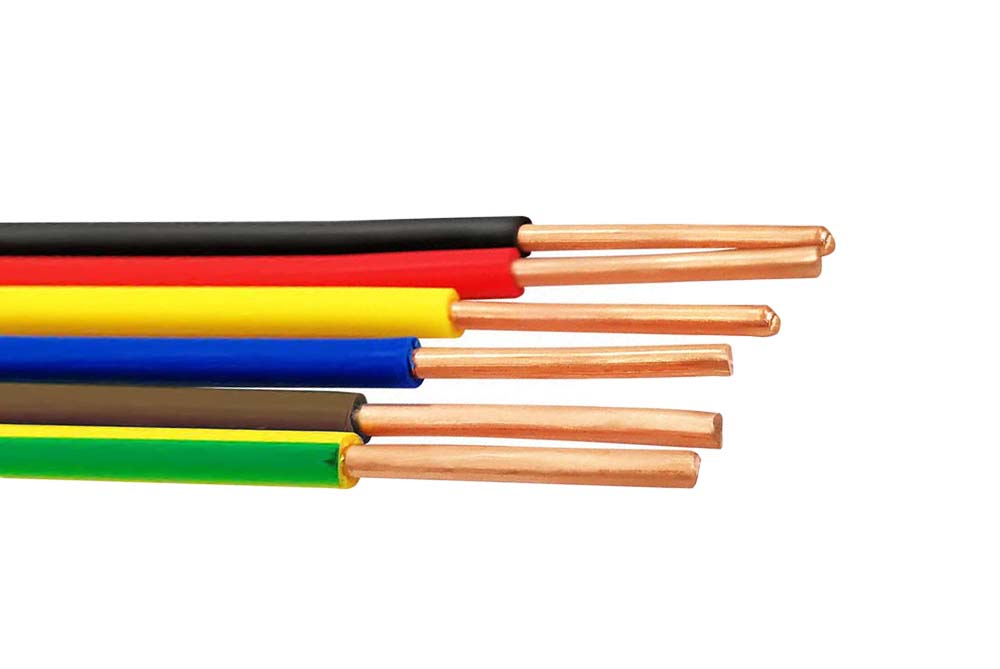

Red, Black, Blue, Orange, White, Yellow, Green/Yellow, Grey, Brown, Violet, Pink.
| H05Z-U | NOMINAL CROSS SECTIONAL AREA mm2 |
MINIMUM OVERALL DIAMETER mm |
MAXIMUM OVERALL DIAMETER mm |
NOMINAL CABLE WEIGHT kg/km |

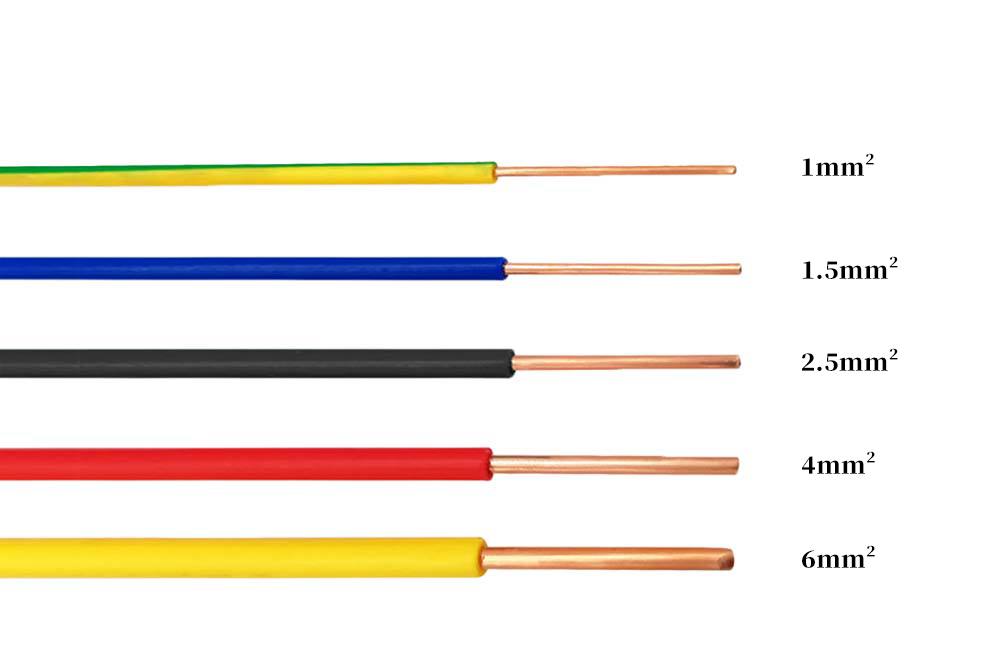

| 0.5 | 1.9 | 2.4 | 7.1 | |
| 0.75 | 2.1 | 2.6 | 9.7 | |
| 1 | 2.2 | 2.8 | 12.1 |
| H07Z-U | NOMINAL CROSS SECTIONAL AREA mm2 |
MINIMUM OVERALL DIAMETER mm |
MAXIMUM OVERALL DIAMETER mm |
NOMINAL CABLE WEIGHT kg/km |
| 1.5 | 2.6 | 3.3 | 18 | |
| 2.5 | 3.2 | 4 | 29 | |
| 4 | 3.6 | 4.6 | 44 | |
| 6 | 4.1 | 5.2 | 62 | |
| 10 | 5.3 | 6.6 | 103 |
We are based in Henan, China, start from 2012,sell to Domestic Market(70.00%), Mid East(11.00%), South America(10.00%), Africa(3.00%), North America(2.00%), Southeast Asia(2.00%), Eastern Asia(00.00%), South Asia(00.00%). There are total about 101-200 people in our office.
Always a pre-production sample before mass production; Always final Inspection before shipment.
Wire, Cable
We have twenty years of experience in design and development
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency: USD,EUR;
Accepted Payment Type: T/T,L/C,Money Gram,Western Union;
Language Spoken: English,Chinese,French
Most quotes are returned within 24 hours
Test items: Conductor DC resistance, AC withstand voltage test, insulation thickness measurement, outer diameter measurement
Test items: conductor DC resistance, AC withstand voltage test, insulation resistance, insulation thickness measurement, outer diameter measurement, aging test, weight loss test, high temperature pressure test, low temperature test, thermal shock test, non-flame delay test.
Product performance requirements and test methods should comply with the provisions of standard GB/T 5023-2008
1、The purpose of the performance acceptance test is to verify whether all the performance of the contract products meet the requirements
2、The location of the performance acceptance test is the purchaser’s site
3、The performance acceptance test shall be carried out within 6 months after the 168-hour full load trial operation of the product, and the specific test time shall be determined by both parties through negotiation.
4、Installation of measuring points, primary components and local instruments required for performance acceptance test shall be provided by the supplier and cooperated by the demander. The supplier shall also provide the technical cooperation and personnel cooperation required for the test.
5、Content of performance acceptance test
In accordance with supplier quality assurance and test requirements.
6、Criteria for performance acceptance test
In accordance with supplier's quality assurance and test requirements.
7、The performance acceptance test shall be conducted by the demander and participated by the supplier. The test program shall be provided by the demander and determined after discussion with the supplier. The specific test shall be completed by the testing department approved by both parties.
8、 Confirmation of performance acceptance test results
The performance acceptance test report shall be prepared by the testing unit, and the conclusions of the report shall be accepted by both parties. If there is any disagreement between the two parties on the results of the test, the two parties shall settle it through negotiation. If no agreement can be reached, it shall be submitted to the superior departments of both parties for negotiation.
9、When a performance acceptance test is conducted, if a party fails to send personnel to participate in the test after receiving the test notice from the other party, it shall be deemed to have agreed to the acceptance test results.
Refer to the "Interim Provisions on Quality Supervision of Large Electric Power Equipment" and "Working Regulations of the General Representative Group in Large Electric Power Equipment Manufacturing Plants" issued by the former Ministry of Electric Power Industry and the Ministry of Machinery Industry.
Refer to DL/T 586-2008 "Technical Guidelines for Equipment Manufacturing Supervision"
GB/T 50319-2013 "Code for Supervision of Construction Projects", GB/T 19000-2016/ISO 9000:2015 "Quality Management and Quality Assurance" standards.
Relevant business terms and technical agreements in the equipment purchase contract signed between the user and the manufacturer, including legally binding documents, letters, correspondence, etc.
Product equipment drawings confirmed by the user and the manufacturer and modification notice issued by the design unit.
National standards, industry standards, and enterprise standards involved in technical documents and design drawings (subject to the latest version). If the standards used in technical documents and design drawings are inconsistent with each other, national standards, industry standards, and enterprise standards will be used in the derivation order.
When the design drawings are inconsistent with the quoted standards, the requirements in the standards shall prevail in principle, except for those with special requirements for parts and components.
Document witness, on-site witness and shutdown pending inspection, namely R point, W point, H point
After each manufacturing supervision content is completed, the supplier and the manufacturing supervision representative will complete the signature procedures on the witness form. The supplier shall submit one copy to the demander's manufacturing supervision representative
Point R: The supplier only needs to provide inspection or test records or report items, that is, document witness
Point W: Inspection or test items attended by the buyer’s supervision representative, that is, on-site witness
Point H: The supplier stops work at this point to wait for inspection or testing by the demander's manufacturing supervision representative, that is, the supplier stops work pending inspection.
After receiving the witness notice, the demander shall promptly send representatives to the supplier's inspection or testing site to participate in on-site witnessing or stop work pending inspection. If the representative of the demand side cannot attend on time, point W can be automatically converted to point R. However, if point H does not receive written notification from the demand side and agrees to be converted to point R, the supplier will not move to the next process on its own and agree with the demand side to change the witness time. . If the buyer still cannot participate on time after the change, point H will be automatically converted to point R.
3.1The supplier has the obligation to cooperate with the demander's supervision and provide relevant information in a timely manner without incurring any costs.
3.2The supplier provides work and life convenience to the demand-side manufacturing supervision representatives
3.3The supplier shall notify the demander's manufacturing supervision representative of the equipment manufacturing supervision items and time before witnessing on-site or suspending work for inspection.
3.4The demander's manufacturing supervision representative has the right to check (borrow) technical data related to the contract manufacturing supervision equipment. If the demander considers that it is necessary to copy and archive it, the supplier should provide convenience.
3.5The supplier shall provide the inspection and test
records and reports to the supervision representative
of the demander after the witness.
