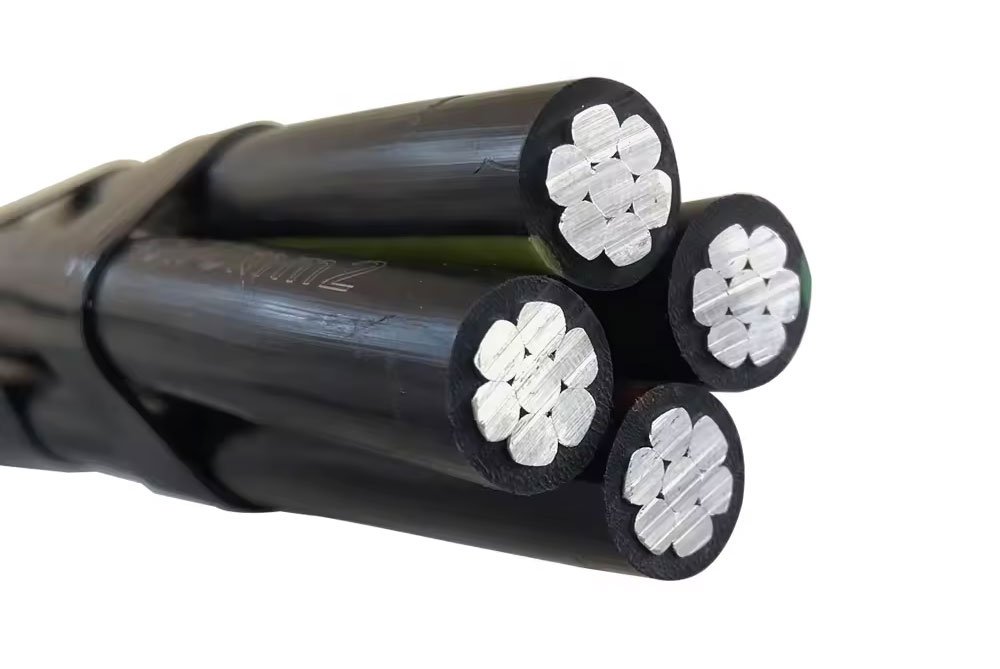

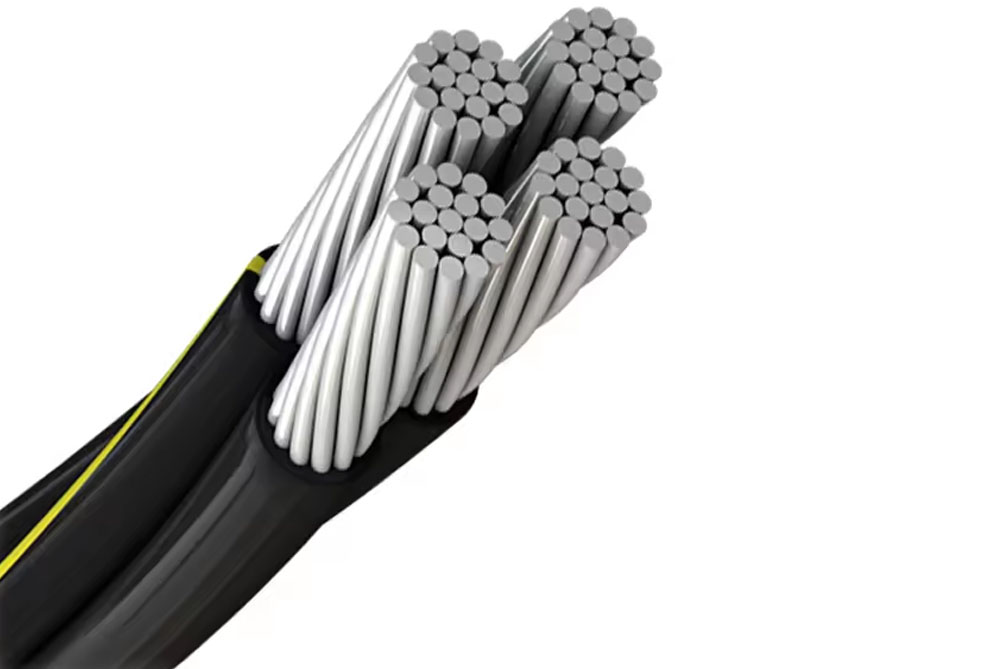

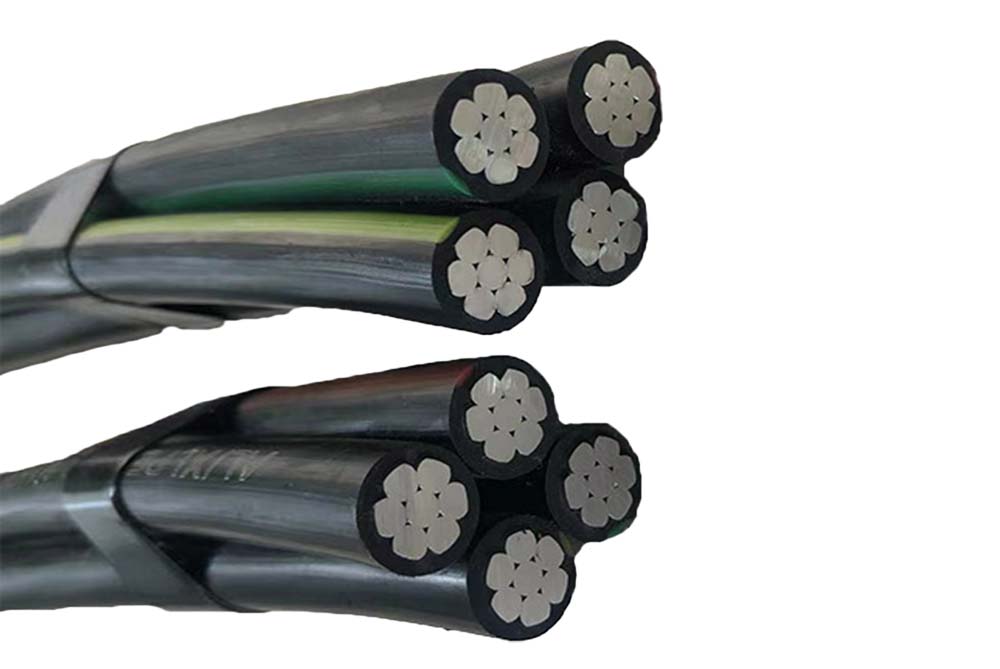

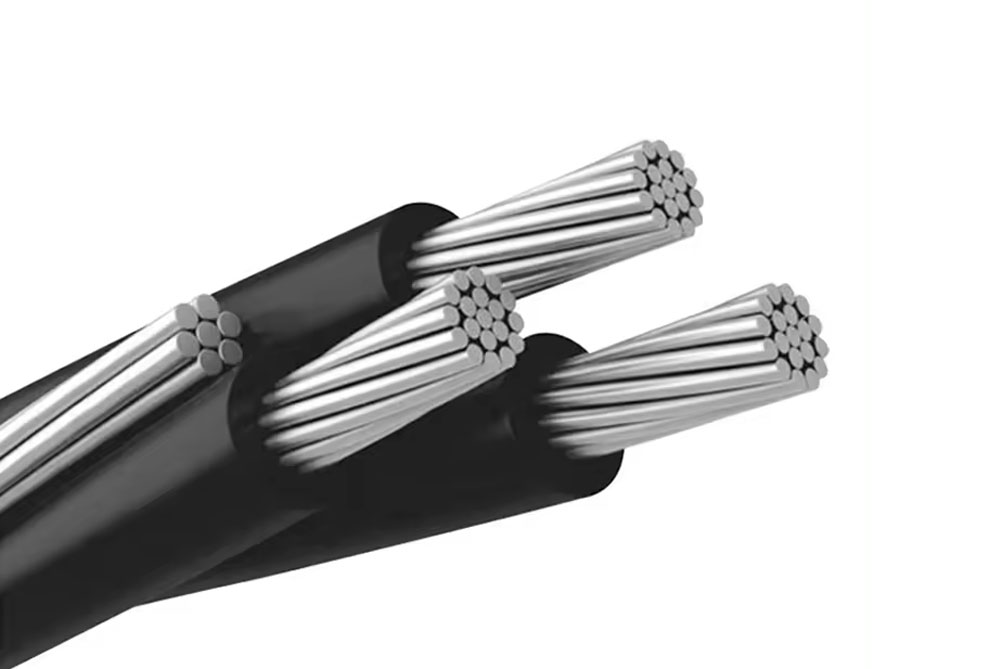

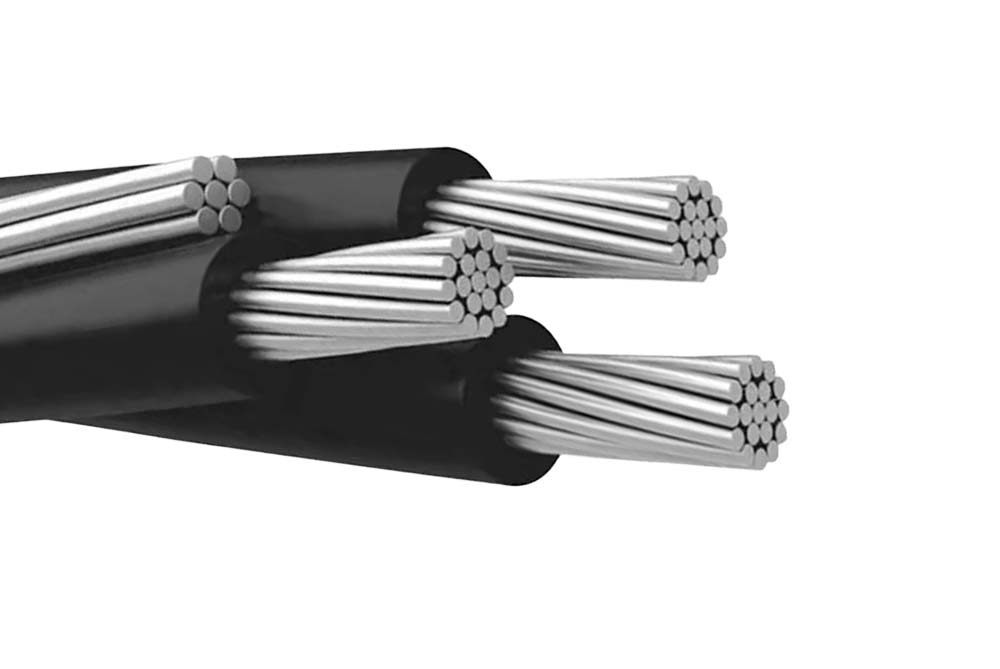

| Quadruplex Service Drop Overhead Wire | ||
| Voltage: | 0.6/1kV | |

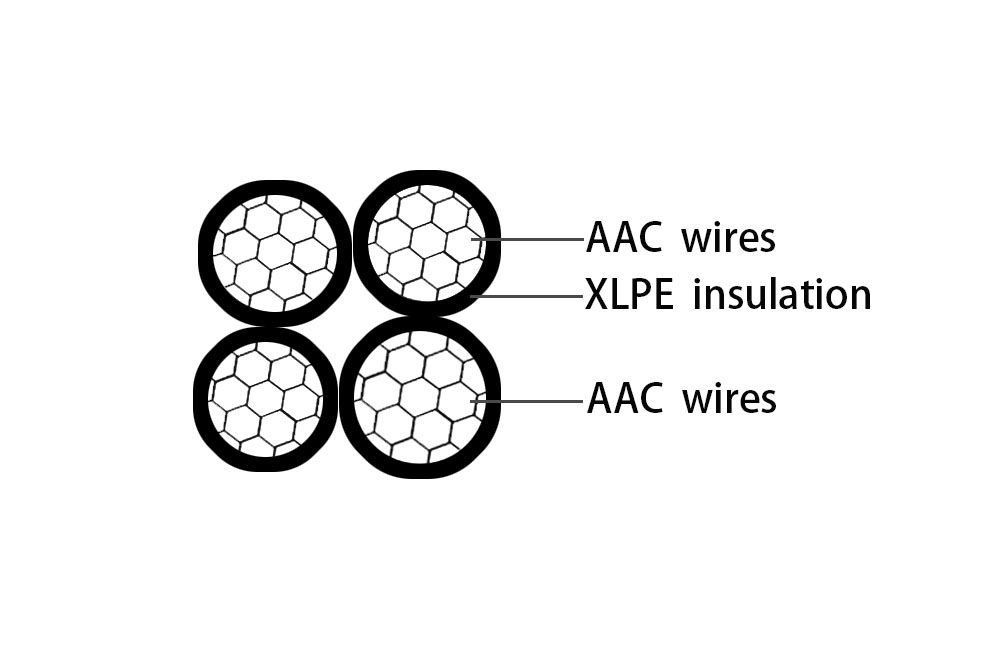

| Structure: | Conductor | ALUMINUM |
| Insulation | XLPE | |
| Armour | CAN | |
| Jacket | PVC | |
Primarily used for overhead service drop applications,such as: street lighting, outdoor lighting and temporary service for construction. To be used at voltages of 600v phase-to-phase or less and conductor temperatures not to exceed 90℃ for cross-linked polyethylene(XLPE) insulated conductors.
Aerial Bundle Cable (ABC cable) is a very innovative concept for overhead power distribution as compared to the conventional bare conductor overhead distribution system. It provides higher level of safety and reliability, lower power
losses and ultimate system economy by reducing installation,maintenance and operative cost. The cables are designed for aerial power lines and room entrance wires with AC rated voltage 1kV and below.
GB/T12527, IEC60502, NF C 33-209, BS 7870, ANSI/ICEA S-76-474 AS/NZS 3560.1 etc.
Rated Voltage U0/U(Um) (KV) : 0.6/1(1.2) No. of cores : 1 , 2 , 3, 4 , 5, 3+1 , 4+1 ,3+2
Nominal cross-section(mm2): 10~240
Phase conductors: Round stranded or compacted 1350-H19 aluminium or Copper conductor ,AAAC,ACSR
Neutral or messenger conductor: Round stranded or compacted 6201 aluminium alloy or AAC ,ACSR
Street lighting conductor: Round stranded or compacted Aluminium conductor
Insulation : XLPE( UV-resistant)
| Table 1 : Technology requirements of copper core ABC insulated cable | |||||
| Nominal cross section area of conductor(mm²) | Single wire Min. No of conductor | Conductor O.D.(reference value)/mm | Nominal thickness of insulation(mm) | ||
| 10 | 6 | 3.8 | 1 | ||
| 16 | 6 | 4.8 | 1.2 | ||
| 25 | 6 | 6 | 1.2 | ||
| 35 | 6 | 7 | 1.4 | ||
| 50 | 6 | 8.4 | 1.4 | ||
| 70 | 12 | 10 | 1.4 | ||
| 95 | 15 | 11.6 | 1.6 | ||
| 120 | 18 | 13 | 1.6 | ||
| 150 | 18 | 14.6 | 1.8 | ||
| 185 | 30 | 16.2 | 2 | ||
| 240 | 34 | 18.4 | 2.2 | ||
| The Max. Resistance of conductor at 20℃(Ω/km) | The Min, resistance of insulation at rated temperature | Breaking load of single core | |||
| Hard copper | Soft copper | 70℃ | 90℃ | Hard copper | |
| 1.906 | 1.83 | 0.0067 | 0.67 | 3471 | |
| 1.198 | 1.15 | 0.0065 | 0.65 | 5486 | |
| 0.749 | 0.727 | 0.0054 | 0.54 | 8465 | |
| 0.54 | 0.524 | 0.0054 | 0.54 | 11731 | |
| 0.399 | 0.387 | 0.0046 | 0.46 | 16502 | |
| 0.276 | 0.268 | 0.004 | 0.4 | 23461 | |
| 0.199 | 0.193 | 0.0039 | 0.39 | 31759 | |
| 0.158 | 0.153 | 0.0035 | 0.35 | 39911 | |
| 0.128 | 0.124 | 0.0035 | 0.35 | 49505 | |
| 0.1021 | 0.0991 | 0.0035 | 0.35 | 61846 | |
| 0.0777 | 0.0754 | 0.0034 | 0.34 | 79823 | |
| Table 2: Technology requirements of aluminum core,aluminum alloy core ABC insulated cable | |||||
| No.section area of conductor (mm²) | Single wire Min. No Of conductor | Conductor O.D. (reference value)/mm | Cable Max. Average outer diameter(mm) | ||
| 10 | 6 | 3.8 | 6.5 | ||
| 16 | 6 | 4.8 | 8 | ||
| 25 | 6 | 6 | 9.4 | ||
| 35 | 6 | 7 | 11 | ||
| 50 | 6 | 8.4 | 12.3 | ||
| 70 | 12 | 10 | 14.1 | ||
| 95 | 15 | 11.6 | 16.5 | ||
| 120 | 15 | 13 | 18.1 | ||
| 150 | 15 | 14.6 | 20.2 | ||
| 185 | 30 | 16.2 | 22.5 | ||
| 240 | 30 | 18.4 | 25.6 | ||
| 300 | 30 | 20.8 | 27.2 | ||
| 400 | 53 | 23.2 | 30.7 | ||
| The Max. Resistance of conductor at 20℃(Ω/km) | The Min. resistance of insulation at rated temperature | Breaking load of single core | |||
| Alumiunm | Aluminum alloy | 70℃ | 90℃ | Alumiunm | Aluminum alloy |
| 3.08 | 3.574 | 0.0067 | 0.67 | 1650 | 2514 |
| 1.91 | 2.217 | 0.0065 | 0.65 | 2517 | 4022 |
| 1.2 | 1.393 | 0.0054 | 0.54 | 3762 | 6284 |
| 0.868 | 1.007 | 0.0054 | 0.54 | 5177 | 8800 |
| 0.641 | 0.744 | 0.0046 | 0.46 | 7011 | 12569 |
| 0.443 | 0.514 | 0.004 | 0.4 | 10354 | 17596 |
| 0.32 | 0.371 | 0.0039 | 0.39 | 13727 | 23880 |
| 0.253 | 0.294 | 0.0035 | 0.35 | 17339 | 30164 |
| 0.206 | 0.239 | 0.0035 | 0.35 | 21033 | 37706 |
| 0.164 | 0.19 | 0.0035 | 0.35 | 26732 | 46503 |
| 0.125 | 0.145 | 0.0034 | 0.34 | 34679 | 60329 |
| 0.1 | 0.116 | 0.0033 | 0.33 | 43349 | 75411 |
| 0.0778 | 0.0904 | 0.0032 | 0.32 | 55707 | 100548 |
