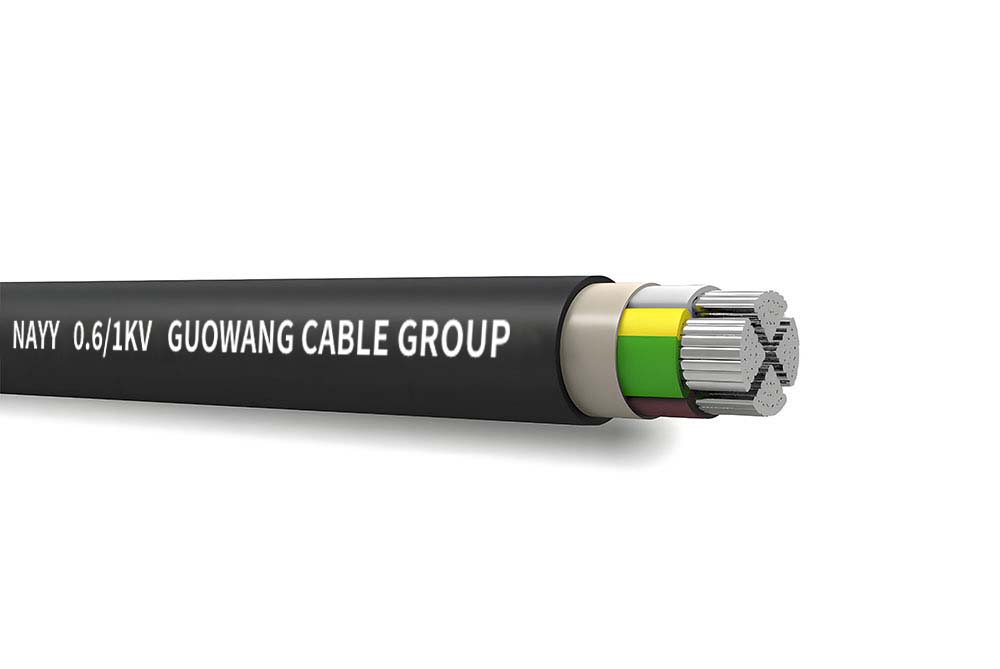

NAYY Aluminium Conductor PVC PVC 0.6/1kV Cable
NAYY Aluminium Conductor PVC PVC 0.6/1kV Cable
NAYY Aluminium Conductor PVC PVC 0.6/1kV Cable
NAYY Aluminium Conductor PVC PVC 0.6/1kV Cable

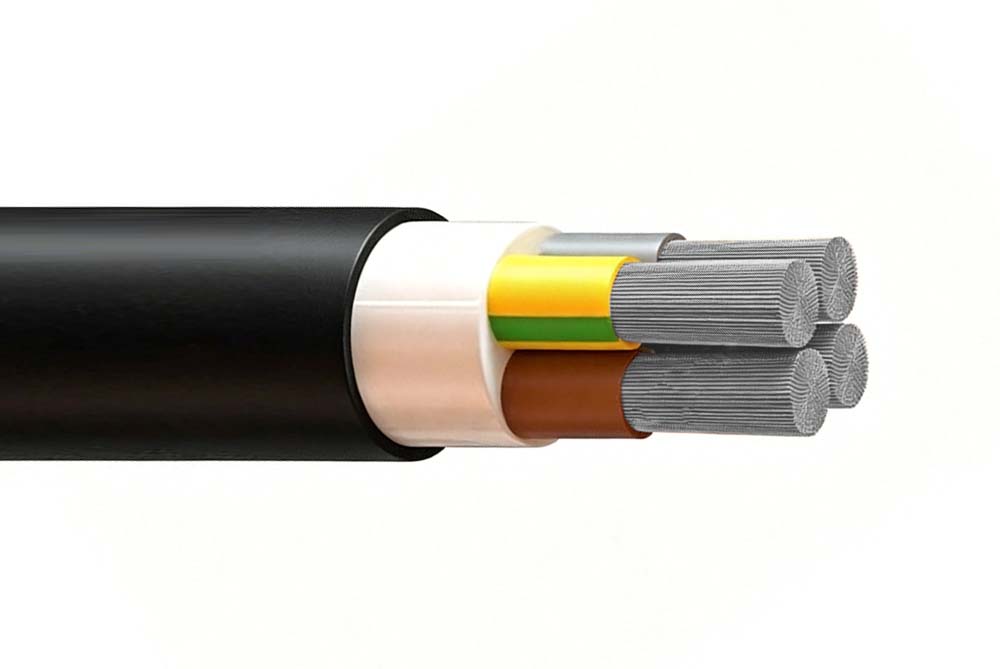

Voltage: 0.6/1kV
Structure: Conductor RE: Class 1 solid aluminium-circular or circular compacted
RM: Class 2 stranded
Insulation PVC (Polyvinyl Chloride)
Jacket PVC (Polyvinyl Chloride)
Feature Building Cable
  • Overview
  • Specifications
  • FAQ
  • Test&Acceptance
  • Send Message

APPLICATION

For fixed installation in buildings, in free air, in ground and in water.

CHARACTERISTICS

Voltage Rating Uo/U

0.6/1kV

Operating Temperature

Operating: -5°C to +70°C

STANDARDS

IEC 60502-1, VDE 0276-603, HD 603, IEC 60228

Flame retardant according to IEC/EN 60332-1-2

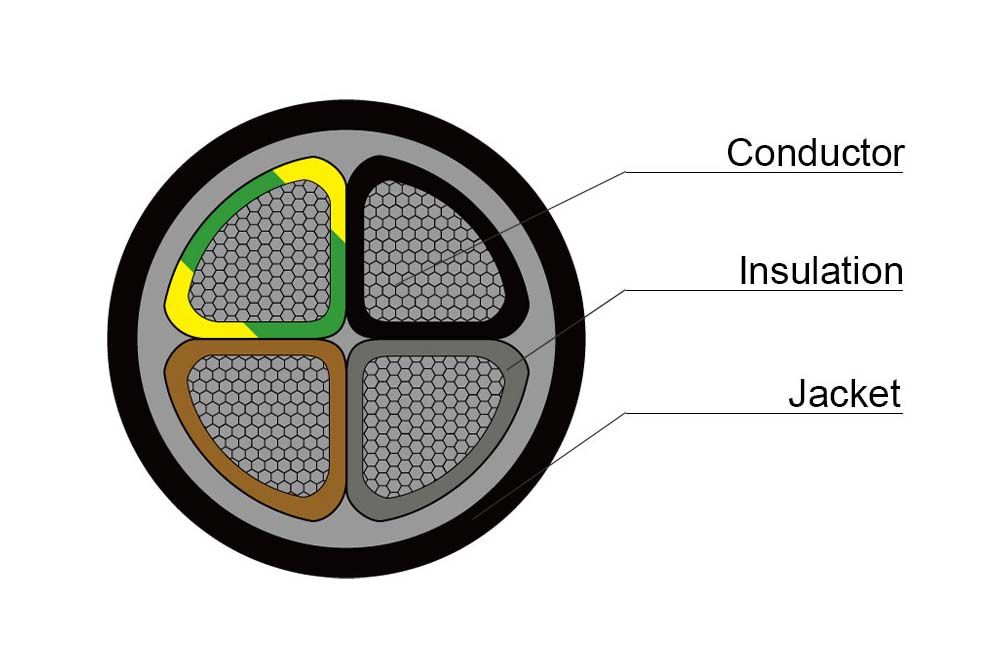

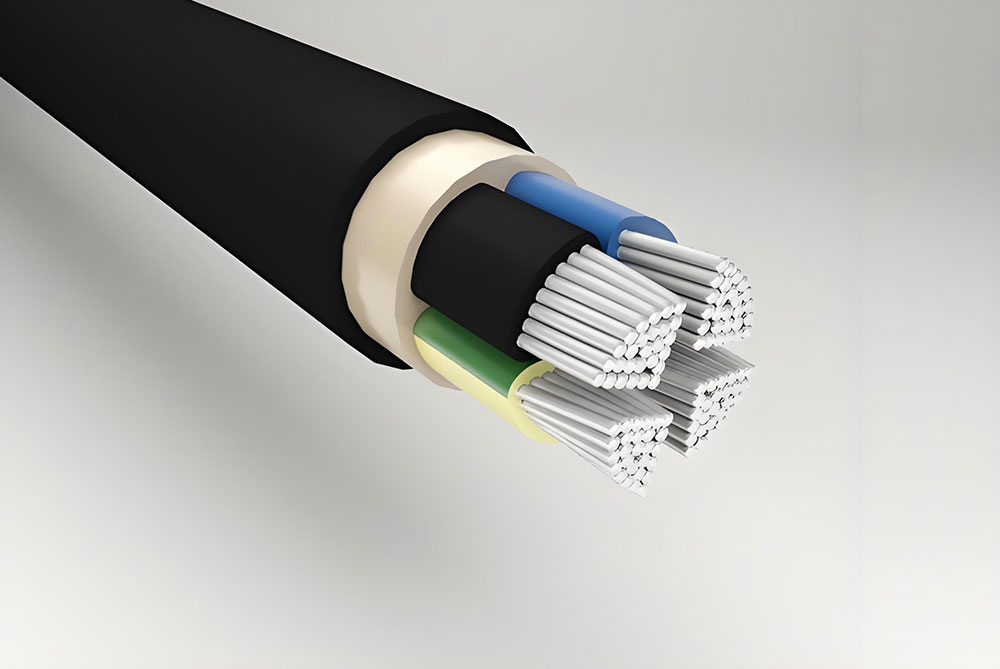

CONSTRUCTION

Conductor

RE: Class 1 solid aluminium-circular or circular compacted

RM: Class 2 stranded

SM: Class 2 sector - shaped

SE: Class 1 solid sector - shaped or stranded (available upon

request)

Insulation

PVC (Polyvinyl Chloride)

Sheath

PVC (Polyvinyl Chloride)

Core Identification

3 core: Green/Yellow Blue Brown

4 core: Green/Yellow Brown Black Grey

5 core: Green/Yellow Blue Brown Black Grey

7 core and above: Black with White numbers

Sheath Colour

Black

NAYY-J

NO. OF CORES CONDUCTOR TYPE NOMINAL CROSS SECTIONAL AREA
mm2
NOMINAL THICKNESS OF INSULATION
mm
FIXED INSTALLATION BENDING RADIUS
mm
NOMINAL THICKNESS OF SHEATH
mm
NOMINAL DIAMETER
mm
NOMINAL WEIGHT
kg/km
1 RE 16 1 158 1.8 10.5 145
1 RE 25 1.2 180 1.8 12 195
1 RE 35 1.2 203 1.8 13.5 255
1 RM 50 1.4 231 1.8 15.4 298
1 RM 70 1.4 255 1.8 17 383
1 RM 95 1.6 285 1.8 19 490
1 RM 120 1.6 300 1.8 20 575
1 RM 150 1.8 330 1.8 22 695
1 RM 185 2 375 1.8 25 845
1 RM 240 2.2 420 1.8 28 1100
1 RM 300 2.4 450 1.9 30 1379
1 RM 400 2.6 510 2 34 1615
1 RM 500 2.8 555 2.1 37 2015
1 RM 630 2.8 645 2.2 43 2472
3 SM 300 2.4 708 3 59 4500
4 RE 6 1 204 1.8 17 377
4 RE 10 1 285 1.8 19 470
4 RE 16 1.2 288 1.8 24 750
4 RE 25 1.2 300 1.8 25 950
4 RE 35 1.2 354 1.8 28.1 1120
4 SM 50 1.4 354 1.9 29.5 1151
4 SM 70 1.4 420 2.1 33.4 1549
4 SM 95 1.6 468 2.2 39 2030
4 SM 120 1.6 516 2.4 43 2400
4 SM 150 1.8 552 2.5 46 3030
4 SM 185 2 612 2.7 51 3650
4 SM 240 2.2 696 2.9 58 4800
4 SM 300 2.4 786 3 65.5 5685
5 RE 10 1 232 1.8 19.3 585
5 RE 16 1 262 1.8 21.8 938
5 RE 25 1.2 325 1.8 27.1 1188
5 RE 35 1.2 362 1.8 30.2 1375
5 RM 50 1.4 432 1.8 36.2 1720
5 RM 70 1.4 492 2.1 44 2240
5 RM 95 1.6 564 2.1 47 3060
5 RM 120 1.6 612 2.4 53 3580
5 RM 150 1.8 672 2.5 56 4400
5 RM 185 2 804 2.7 59 5481
5 RM 240 2.2 852 2.9 71

7000

NAYY-O

NO. OF CORES CONDUCTOR TYPE NOMINAL CROSS SECTIONAL AREA
mm2
NOMINAL THICKNESS OF INSULATION
mm
FIXED INSTALLATION BENDING RADIUS
mm
NOMINAL THICKNESS OF SHEATH
mm
NOMINAL DIAMETER
mm
NOMINAL WEIGHT
kg/km
1 RE 16 1 157 1.8 10.5 145
1 RE 25 1.2 180 1.8 12 195
1 RE 35 1.2 203 1.8 13.5 255
1 RM 50 1.4 225 1.8 15 298
1 RM 70 1.4 204 1.8 17 383
1 RM 95 1.6 285 1.8 19 490
1 RM 120 1.6 300 1.8 20 575
1 RM 150 1.8 330 1.8 22 695
1 RM 185 2 375 1.8 25 845
1 RM 240 2.2 420 1.8 28 1100
1 RM 300 2.4 450 1.9 30 1379
1 RM 400 2.6 510 2 34 1615
1 RM 500 2.8 555 2.1 37 2015
1 RM 630 2.8 645 2.2 43 2472
1 RM 800 2.9 675 2.4 45 3120
3 SE 300 2.4 708 3 59 4500
4 RE 16 1 288 1.8 24 750
4 RE 25 1.2 300 1.8 25 950
4 SE 35 1.2 338 1.8 28.1 1120
4 SE 50 1.4 360 1.9 30 1151
4 SE 70 1.4 420 2.1 35 1549
4 SE 95 1.6 468 2.2 39 2030
4 SE 120 1.6 516 2.4 43 2400
4 SE 150 1.8 552 2.5 46 3030
4 SE 185 2 612 2.7 51 3650
4 SE 240 2.2 672 2.9 56 4800
