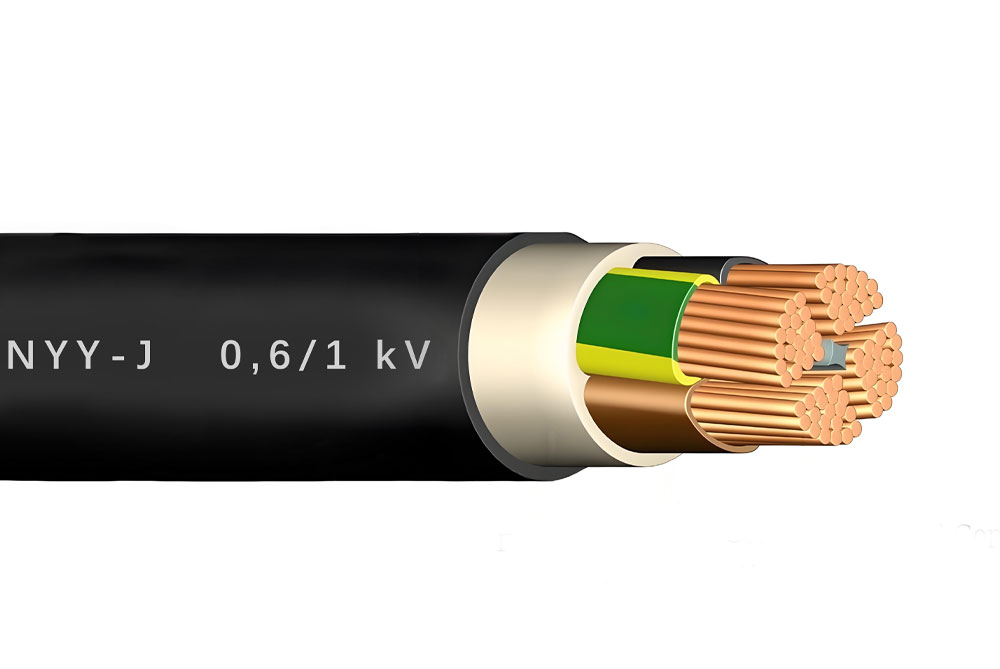

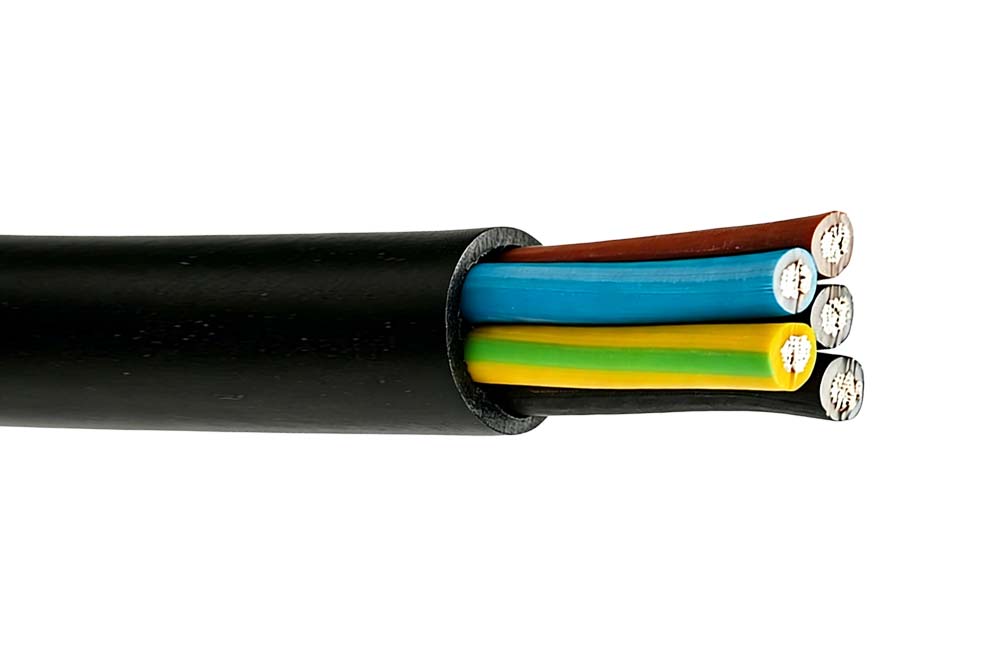

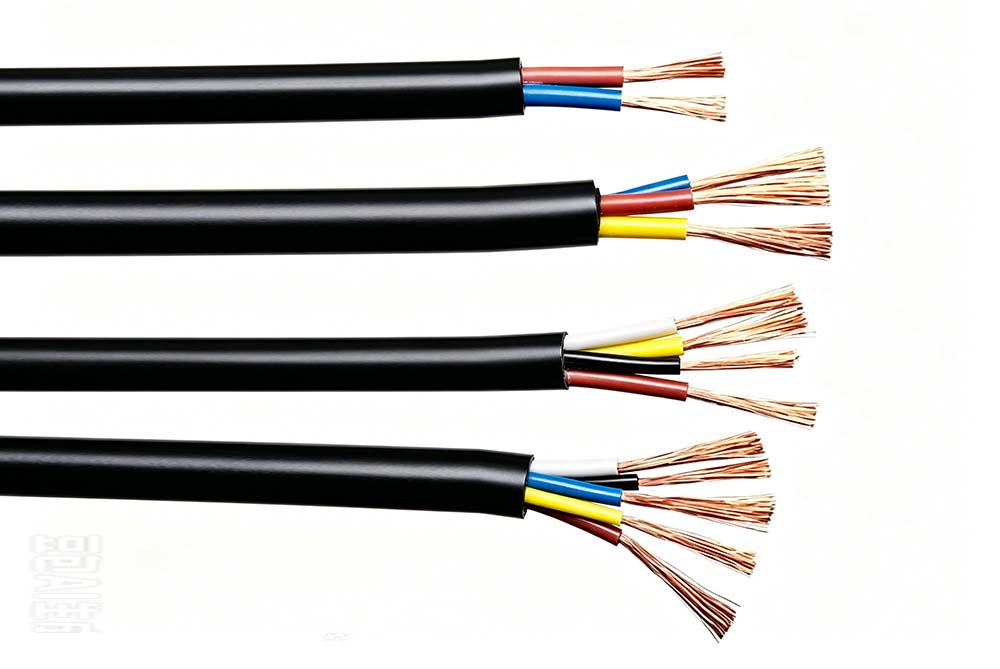

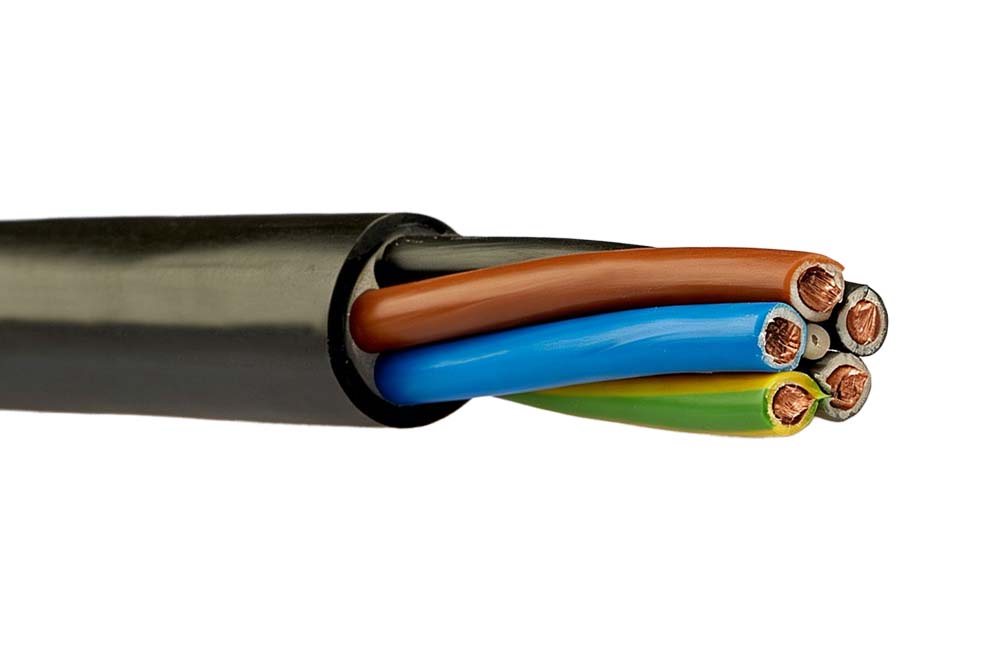

NYY / NYY-J / NYY-O PVC 0.6/1kV Power Cable
NYY / NYY-J / NYY-O PVC 0.6/1kV Power Cable
NYY / NYY-J / NYY-O PVC 0.6/1kV Power Cable
NYY / NYY-J / NYY-O PVC 0.6/1kV Power Cable
Voltage: 0.6/1kV
Structure: Conductor RE: Class 1 solid copper conductor
RM: Class 2 stranded copper conductor
Insulation PVC (Polyvinyl Chloride)
Jacket PVC (Polyvinyl Chloride)
Feature Power and control cable
  • Overview
  • Specifications
  • FAQ
  • Test&Acceptance
  • Send Message

APPLICATION

Power and control cable for fixed installation. Can be used indoors, outdoors, underground, in concrete and in water.

Note

NYY-O (without Green/Yellow earth conductor) also available

CHARACTERISTICS

Voltage Rating Uo/U

0.6/1kV

Temperature Rating

Fixed: -15ºC to +70ºC

Flexed: -5ºC to +50ºC

Minimum Bending Radius

Fixed: 12 x overall diameter

STANDARDS

IEC 60502-1, VDE 0276-603, HD 603, IEC 60228

Flame retardant according to IEC/EN 60332-1-2

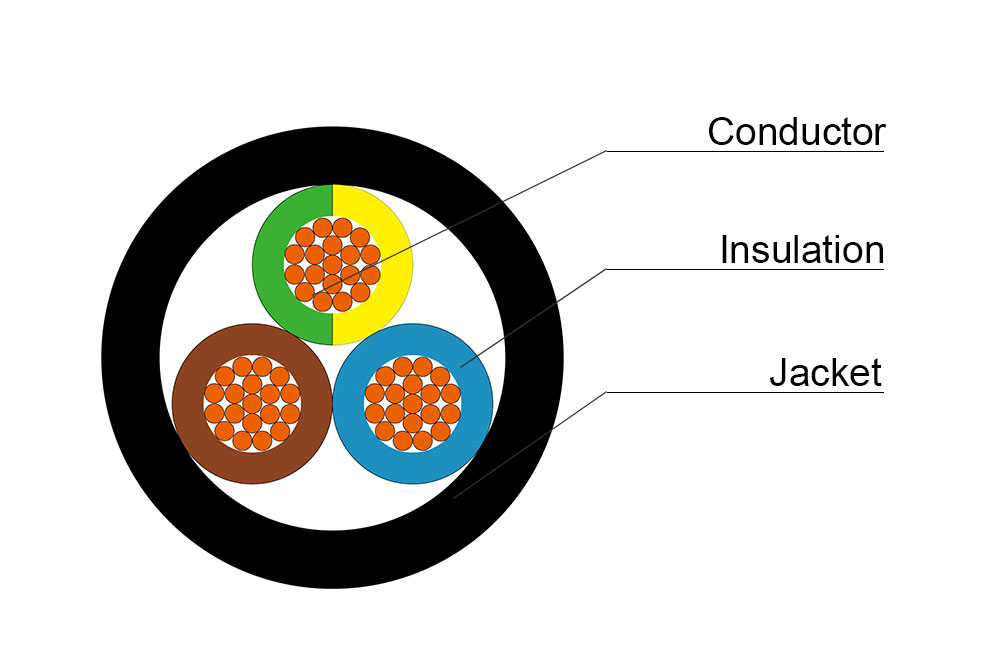

CONSTRUCTION

Conductor

RE: Class 1 solid copper conductor

RM: Class 2 stranded copper conductor

Insulation

PVC (Polyvinyl Chloride)

Filler

PVC (Polyvinyl Chloride)

Sheath

PVC (Polyvinyl Chloride)

Core Identification

3 core: Green/Yellow Blue Brown

4 core: Green/Yellow Brown Black Grey

5 core: Green/Yellow Brown Black Grey Blue

7 core and above: Black with White numbers

Sheath Colour

Black

NO. OF CORES NOMINAL CROSS SECTIONAL AREA
mm2
CONDUCTOR
TYPE
NOMINAL THICKNESS
OF INSULATION
mm
NOMINAL THICKNESS
OF SHEATH
mm
NOMINAL OVERALL
DIAMETER
mm
NOMINAL
WEIGHT
kg/km
1 2.5 RE 0.8 1.4 6.15 62
1 4 RE 1 1.4 7.5 85
1 6 RE 1 1.4 7.5 108
1 10 RM 1 1.4 8.6 155
1 16 RM 1 1.4 9.6 218
1 25 RM 1.2 1.4 11.1 318
1 35 RM 1.2 1.4 12.1 414
1 50 RM 1.4 1.4 13.7 552
1 70 RM 1.4 1.4 15.5 750
1 95 RM 1.6 1.5 17.6 1020
1 120 RM 1.6 1.6 29.3 1259
1 150 RM 1.8 1.6 21 1546
1 185 RM 2 1.7 23.2 1913
1 240 RM 2.2 1.8 26.2 2471
1 300 RM 2.4 2 29.2 3097
2 1.5 RE 0.8 1.8 10 147
2 2.5 RE 0.8 1.8 10.7 179
2 4 RM 1 1.8 13 268
2 6 RM 1 1.8 14.2 337
2 10 RM 1 1.8 16.2 472
2 16 RM 1 1.8 18.2 644
3 1.5 RE 0.8 1.8 10.4 166
3 2.5 RE 0.8 1.8 11.3 212
3 4 RE 1 1.8 13.1 299
3 6 RM 1 1.8 15 402
3 10 RM 1 1.8 17.1 570
3 16 RM 1 1.8 19.2 789
3 25 RM 1.2 1.8 22.1 1141
3 35 RM 1.2 1.8 24.1 1462
3 50 RM 1.4 1.8 27.6 1964
3 70 RM 1.4 2.1 36.3 3635
3 95 RM 1.6 2.2 40 4488
4 1.5 RE 0.8 1.8 11.6 198
4 2.5 RE 0.8 1.8 12.1 252
4 4 RM 1 1.8 15.1 391
4 6 RM 1 1.8 16.5 465
4 10 RM 1 1.8 18.6 702
4 16 RM 1 1.8 21.1 992
4 25 RM 1.2 1.8 24.2 1431
4 35 RM 1.2 1.8 26.6 1861
4 50 RM 1.4 1.9 30.9 2535
4 70 RM 1.4 2.1 35.1 3441
4 95 RM 1.6 2.2 40.4 4691
4 120 RM 1.6 2.4 44.2 5757
4 150 RM 1.8 2.5 48.5 7095
4 185 RM 2 2.7 53.9 8810
4 240 RM 2.2 2.9 61.1 11400
5 1.5 RE 0.8 1.8 12 232
5 2.5 RE 0.8 1.8 13.1 302
5 4 RM 1 1.8 16.6 477
5 6 RM 1 1.8 18.2 618
5 10 RM 1 1.8 20.3 853
5 16 RM 1 1.8 23.1 1212
5 25 RM 0.8 1.8 26.6 280
7 1.5 RE 0.8 1.8 16.6 477
7 2.5 RE 0.8 1.8 14.1 368
12 1.5 RE 0.8 1.8 16.6 475
12 2.5 RE 0.8 1.8 18.2 628
14 1.5 RE 0.8 1.8 17.1 515
19 1.5 RE 0.8 1.8 18.9 648
19 2.5 RE 0.8 1.8 20.3 843
27 1.5 RE 0.8 1.8 22.6 895
  • Who we are?

    We are based in Henan, China, start from 2012,sell to Domestic Market(70.00%), Mid East(11.00%), South America(10.00%), Africa(3.00%), North America(2.00%), Southeast Asia(2.00%), Eastern Asia(00.00%), South Asia(00.00%). There are total about 101-200 people in our office.

  • How can we guarantee quality?

    Always a pre-production sample before mass production; Always final Inspection before shipment.

  • What can you buy from us?

    Wire, Cable

  • Why should you buy from us not from other suppliers?

    We have twenty years of experience in design and development

  • What services can we provide?

    Accepted Delivery Terms: FOB,CFR,CIF,EXW;
    Accepted Payment Currency: USD,EUR;
    Accepted Payment Type: T/T,L/C,Money Gram,Western Union;
    Language Spoken: English,Chinese,French

  • How long does it take to get a quote back?

    Most quotes are returned within 24 hours

Test

1.sampling tests

Sampling test items: cable conductor DC resistance; finished cable withstand voltage test;conductor single wire diameter and deviation;insulation average thickness, thinnest point;The sheathed average thickness and thinnest point

2.Type test items:

Sampling test items: cable conductor DC resistance; finished cable withstand voltage test;conductor single wire diameter and deviation;insulation average thickness, thinnest point;the sheathed average thickness and thinnest poin;change rate of tensile strength and elongation of insulation and sheath before and after aging;insulated wire core withstand voltage test;hot extension test;ozone resistance test;finished cable flexure test, etc.

Acceptance Check

The purpose of the performance acceptance test is to verify whether all the performance of the contract products meet the requirements

2.The location of the performance acceptance test is the purchaser’s site

3.The performance acceptance test shall be carried out within 6 months after the 168-hour full load trial operation of the product, and the specific test time shall be determined by both parties through negotiation.

4.Installation of measuring points, primary components and local instruments required for performance acceptance test shall be provided by the supplier and cooperated by the demander. The supplier shall also provide the technical cooperation and personnel cooperation required for the test.

5.Content of performance acceptance test

In accordance with supplier quality assurance and test requirements.

6.Criteria for performance acceptance test

In accordance with supplier's quality assurance and test requirements.

7.The performance acceptance test shall be conducted by the demander and participated by the supplier. The test program shall be provided by the demander and determined after discussion with the supplier. The specific test shall be completed by the testing department approved by both parties.

8.Confirmation of performance acceptance test results

The performance acceptance test report shall be prepared by the testing unit, and the conclusions of the report shall be accepted by both parties. If there is any disagreement between the two parties on the results of the test, the two parties shall settle it through negotiation. If no agreement can be reached, it shall be submitted to the superior departments of both parties for negotiation.

9.When a performance acceptance test is conducted, if a party fails to send personnel to participate in the test after receiving the test notice from the other party, it shall be deemed to have agreed to the acceptance test results.

Manufacture Supervision

1.Supervise manufacturing basis

Refer to the former Ministry of power Industry, Ministry of Machinery Industry issued by the electricity Office (1995) No. 37 "Interim Provisions for the quality supervision of large power equipment", "General representative group working Regulations in large power equipment manufacturers"

2.Manufacturing supervision method

Document witness, on-site witness and shutdown pending inspection, namely R point,W point , and H point.

After each manufacturing supervision content is completed, the supplier and the manufacturing supervision representative will complete the signature procedures on the witness form. The supplier shall submit one copy to the demander's manufacturing supervision representative.

R point:The supplier only needs to provide items of inspection or test records or reports, that is, document evidence.

W point:Inspection or test items attended by the purchaser’s manufacturing supervision representative, i.e. on-site witness

H point: When the supplier stops to wait for the inspection or test of the buyer's supervision representative, that is, the project is stopped for inspection.

Upon receipt of the witness notice, the demander shall promptly send a representative to the site of the supplier's inspection or test to participate in on-site witness or stop work for inspection. If the representative of the demander cannot attend on time, point W can be automatically converted to point R, but if point H is not agreed to be converted to point R by written notice of the demander, the supplier will not transfer to the next process and agree with the demander to change the witness time. If the buyer is still unable to participate on time after the change, the H point will be automatically converted to R point.

3. Requirements for suppliers to cooperate with manufacturing supervision

3.1 The supplier has the obligation to cooperate with the demander's manufacturing supervision and provide relevant information in a timely manner without incurring any costs.

3.2 The Supplier shall provide the demander's supervision representative with the convenience of work and life

3.3 The supplier shall inform the Buyer's representative of the equipment supervision project and time before witnessing the site or stopping work for inspection..

3.4 Demander's supervision representative has the right to check (borrow) the technical information related to the contract supervision equipment. If demander considers it necessary to copy and file, the supplier shall provide convenience.

3.5 The supplier shall provide the inspection and test records and reports to the supervision representative of the demander after the witness.
